IP65 Helicopter LED Precision Approach Path Indicator AH-HP-PAPI
Product Details
| Input Voltage(V): | AC110-240/DC12-48V | Beam Angle(°): | 360 |
|---|---|---|---|
| CRI (Ra): | 100 | IP Rating: | IP65 |
| Highlight |
LED precision approach path indicator,IP65 helicopter approach path indicator,AH-HP-PAPI papi indicator lights |
||
Product Description

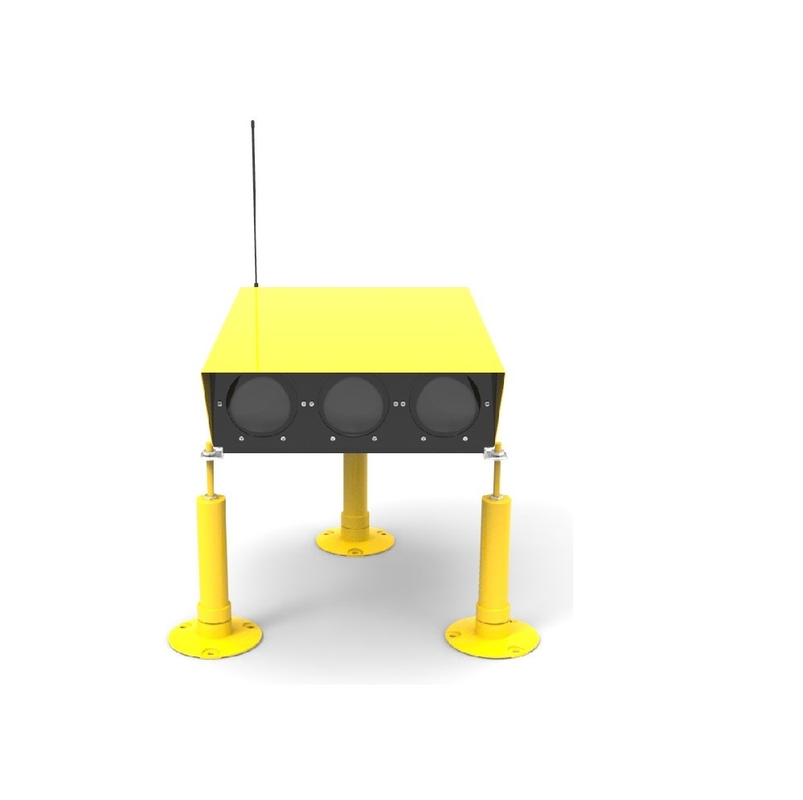

AH-HP-PAPI LED Precision Approach Path Indicator
Heliport Light
Helipad Lighting
LED Elevated Perimeter Light
compliant with ICAO,FAA,CAAC
This product is used for shining yellow or green light to accurately indicate the threshold of final approach and taking off area.
Description
This product is used in helicopter taking off and landing area at night or in the daytime with poor visibility.
Main Parameter
| Description | Parameter |
| Mode | AH-HP-PAPI |
| Light source | LED |
| Service life of LED | 100, 000hours |
| Signal mode | Steady-burning way |
| Operating voltage | AC220V,50/60 Hz(Option voltage,eg.AC120V,DC48V) |
| Emitting color | Red/white |
| Power consumption | 70Wx3 |
| Overall size(mm) | 557x740x464 |
| Installation size(mm) | Φ140× Φ12 |
| Ambient temperature | -55℃~+70℃ |
| Weight | 18kg |
| Protection standard | IP65 |
| Special part | Frangible part |
Compliance
The lights in accordance with ICAO and FAA regulations and CAP437 (offshore helipads)
