Aviation Warning Lights
>
|
| Brand Name | Annhumg |
| Certification | FAA |
| Model Number | AH-SA-S5 |

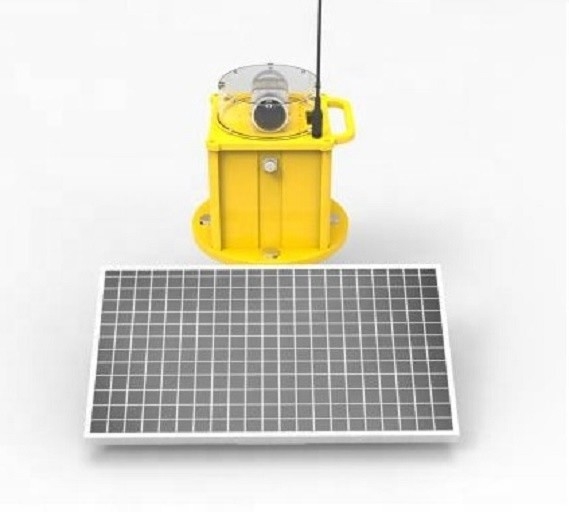

AH-SA-S5 use unidirectional optics, designed for permanent usage at Non-Precision Runways located in regions without access to electricity and high photovoltaic potential.The LED REIL/RTIL provide rapid and positive identification of the approach end of the runway to arriving pilots. Two synchronized unidirectional flashing lights shall be installed on each corner of the runway-landing threshold, facing the approach area.
Solar power system is equipped for operating 365 days on solar energy.
Compliance
ICAO Annex 14 Vol. I (7th. Edition, July 2016)
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP67).
PC housing, UV resistance, shockproof and corrosion proof.
Powder coated die casting aluminum base
System design
ON/OFF button interface
Wireless remote control by AH-HP-RC
Equipped with charging port and extra battery charger from
Optional
NVG - compatible infrared (IR) LED
Application
Airport, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting, Runway end light
Helipad Runway
Emergency operations
Airport/Airdrome
| SPECIFICATIONS | AH-SA-S5 LED Solar Powered Threshold/End Identification Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors |
White
|
| Intensity(cd) |
150(L1), 500(L2), 1500(L3), 3500(L4), 5000(L5)
|
| Flash Characteristics |
60-120FPM(Factory setting: 60FPM)
|
| Operation Mode | Wireless remote controlled |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage |
24VDC
|
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) |
24V/14AH
|
| Battery Service Life | Average 5 years |
| Physical Characteristics | |
| Lamb Body Material |
Polycarbonate
|
| Base Material |
Powder-coated Die-casting aluminum
|
| Installation Size | 140×140×M10 |
| Overall Size (mm) | 560×500×514 |
| Weight(kg) | 10 |
| Product Life Expectancy | Average 10 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-55~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP67 |
| Compliance | |
| ICAO |
ICAO, Annex 14th,Volume I, 7th Edition dated
July 2016, clause 5.3.8 & Appendix 1, Figure
A1-1b
|
| Figure A1-1b | |
| Optional | |
| NVG - compatible infrared (IR) LED |
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
