FAA Helipad LED Lights Touchdown And Lift Off Area Lighting
  • FAA Helipad LED Lights Touchdown And Lift Off Area Lighting
  • FAA Helipad LED Lights Touchdown And Lift Off Area Lighting

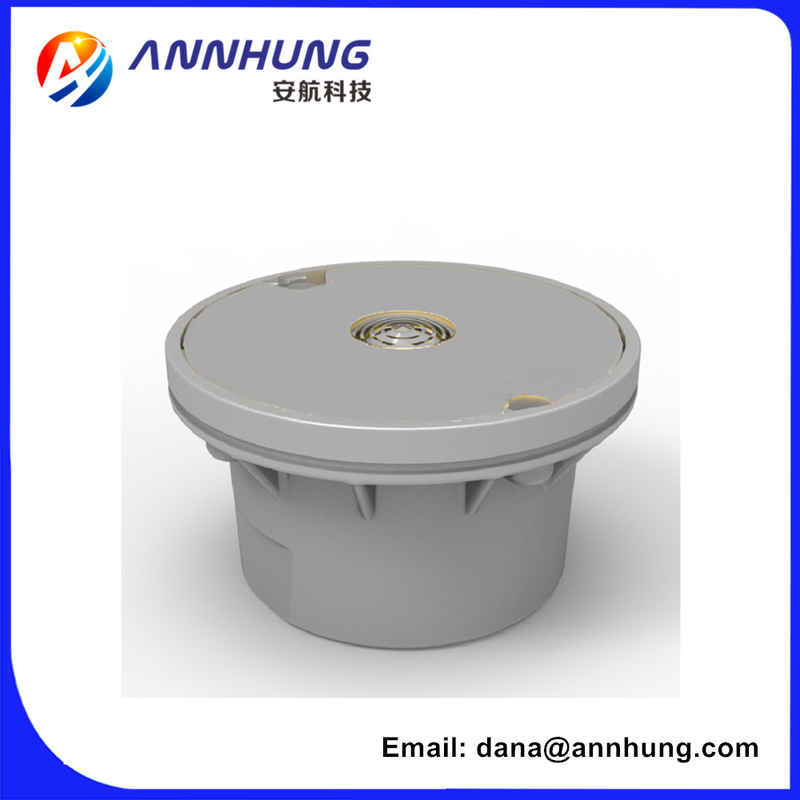

FAA Helipad LED Lights Touchdown And Lift Off Area Lighting

Place of Origin China
Brand Name Annhumg
Certification FAA
Model Number AH-HP-I-TLOF
Product Details
Color Temperature(CCT):
Green
Operation Mode:
24hours Operation
Color Rendering Index(Ra)::
100
Lifespan (hours):
>100,000
High Light:

FAA Helipad LED lights

,

Helicopter taxiway edge LED Lights

,

Aiming point Helipad LED Lights

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$229.00 - $299.00/ Piece
Packaging Details
Plastic bag with paper carton.
Delivery Time
3-15days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Month
Product Description

AH-HP-I-TLOF Touchdown and lift-off area lighting


Area edge light

Helicopter taxiway edge light

Apron edge light

Helipad inset light

Touchdown and liftoff





Product Description





It could be used as Aiming point light, perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway, Flight path alignment guidance lighting, etc. The emitting color is green or yellow or white or blue.


Compliance

ICAO Annex 14 Volume Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAAC MH 5001—2013 Aerodrome technical standards
CAAC MH 5013—2014 Technical Standards of Civil Heliports

Features
Electrical

Ultra high intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V

Physical

Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by color powder coasted which have good corrosion protection and load bearing.
IP68 waterproof ensure light work fine underground

Optional

Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Light intensity adjustable

Application

Helipad/Heliport TLOF areas
Heliport FATO ares
Helipad Runway
Helipad taxiway
Aiming point light

SPECIFICATIONS
AH-HP-I-TLOF
Light Characteristics
Light Source LED
Available Colors
Green
Horizontal Degree(°)
Omnidirection (360°)
Flash Characteristics
Steady burning
Operation Mode 24hours operation
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage
110-240VAC, 48VDC, 24VDC or others
Power(W)
≤7.5W
Circuit Protection Integrated
Physical Characteristics
Body Material
Die-casting aluminum
Mounting
Θ225×145-M10*2
Dimension(mm)
Θ220×133.47
Weight(kg) 4
Environmental Factors
Ambient Temperature(℃) -55~70
Humidity 0~100%
Waterproof IP68
Compliance
ICAO
ICAO Annex 14 Volume Heliports 5.3
Options Available

Infrared LED compatible for NVG (Night
Vision Goggles)

Light intensity adjustable

VHF pilot to ground remote control



Company information





Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, FAA, CAAC, IALA,ROHS,ISO9001, ISO 14001, ISO 45001etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got 12 software copyright, 9 design patent and 5 utility model patent.





We have professional technicians and a strong sales team. Our products have been sold to regions as far away as Asia, Europe and North America, among others. Products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
