AH-HP-G-VHF Heliport Light Wireless Radio Controller permits pilots to turn on airfield lights utilizing their existing the aircraft VHF 118-137 MHZ band radio when flying to an airport or heliport.
Products adavantages:
Compliance: ICAO and FAA regulations and CAP437 (offshore helipads)
Features Low maintenance costs Protected from input transients, output overload, over-voltage, and over temperature conditions. System may be set to respond to 3, 5 or 7 clicks (default setting: 5 clicks) to set the light intensity of the dimming light(3 click-25%, 5 click-50%, 7click-100%), it will control ANNHUNG dimming heliport lighting only.Smarter design for pilots.
Adjustable activation duration (user programmable 1, 5, 15, 30, 45 and 60 minutes)(default setting: 15 minutes). Frequency of signal transmission: 137-174/400-470MHZ Frequency of signal reception: 118-136MHZ Solar system(solar panel, battery) is optional for AH-HP/G-VHF Photocell control is optional

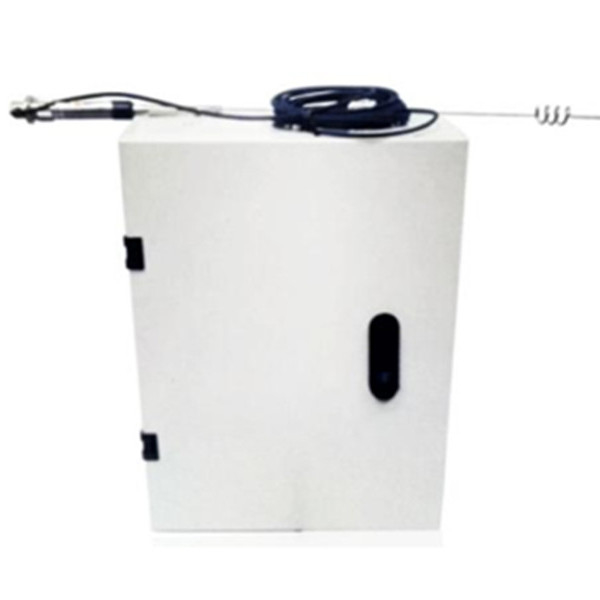

Detailed Images
Product detailed parameters:
Operating Voltage
12VDC, 48VDC, 110VAC, 240VAC, etc
Body Material
Painted Metal Box (SS316, SS304 is optional)
Overall size(mm)
400×300×200 (Standard, others optional)
Installation size(mm)
360×260×θ10 (Standard, others optional)
Weight(kg)
5 (Standard, others optional)
Product Life Expectancy
Average 5 years
Ambient Temperature(℃)
-55~70
Humidity
0~95%
Waterproof
IP65
Solar system
Options Available
Photocell
