Compliance
l ICAO Annex 14 Volume
l FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
l High intensity, energy efficient LED, glare-free floodlight
l Period of LED Life ≥100,000 hours
l Power supply available in AC(110-240VAC), DC48V, DC12V, etc
l Ultra-efficient LED reduce power consumption
Physical
l The enclosure is made out of stainless steel powder coated in electrostatic field, ensure it have good weather resistance
l The assembly has a low profile of less than 25cm and mounts to frangible point
l Specially custom lens optic designed specifically for helipad operation
l The angle of tilt of the luminaire is easily adjusted to maximise heliport illumination
Optional
l Infrared LED for pilot using NVG(Night Vision Goggles)
l Controller for power supplying and turn ON/OFF light
l VHF pilot to ground remote control
l Marine treated
Application
l Helipad/Heliport /Helideck

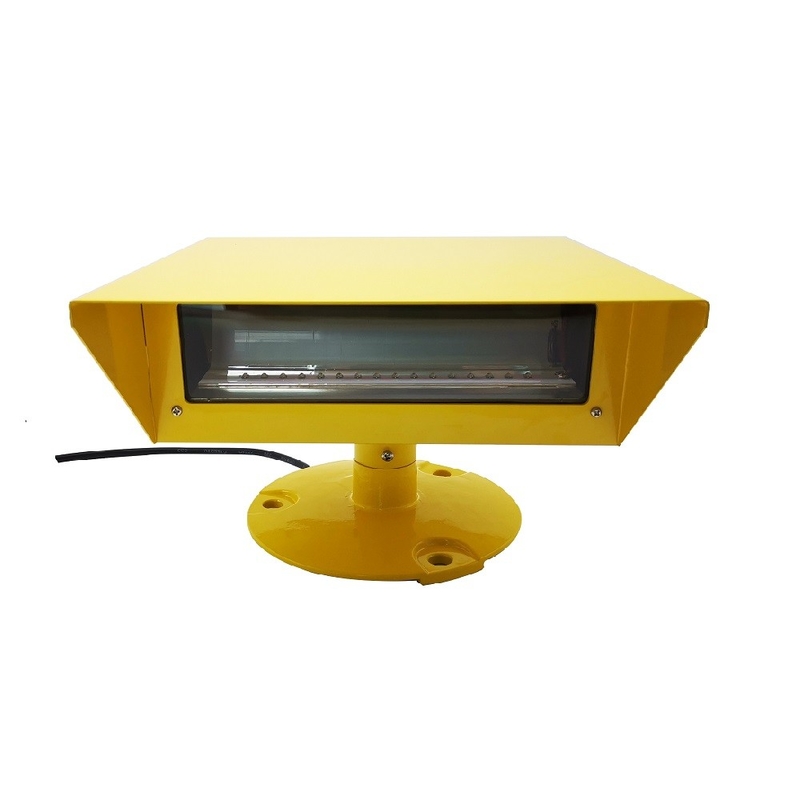

SPECIFICATIONS | AH-HP-F1 LED Heliport Surface Flood Light |
Light Characteristics | |
Light Source | CREE Ultra high intensity LED |
Emitting Color | White |
Luminous efficiency: 120lm/W | 120lm/W |
Flash Characteristics | Steady burning |
Operation Mode | 24hours operation |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics | |
Operating Voltage | 110-240VAC, 48VDC, 24VDC or others |
Power(W) | 10 |
Physical Characteristics | |
Enclosure Material | Powder Coated Stainless Steel |
Overall size(mm) | 230×230×165 |
Installation size(mm) | 140×140×12 |
Weight(kg) | 2.4 |
Product Life Expectancy |
Average 5 years
|
Environmental Factors | |
Ambient Temperature(℃) -55℃~+70℃ |
-55~70 |
Humidity | 0~100% |
Wind Speed | 80m/s |
Waterproof | IP66 |
Compliance | |
ICAO | ICAO Annex 14 Volume |
Options Available | |
Infrared LED compatible for NVG (Night | |
Vision Goggles) | |
Marine Treated | |
VHF pilot to ground remote control
|
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
