LED CHAPI Heliport Approach Path Indicators Emergency Helipad Airport Helideck
  • LED CHAPI Heliport Approach Path Indicators Emergency Helipad Airport Helideck

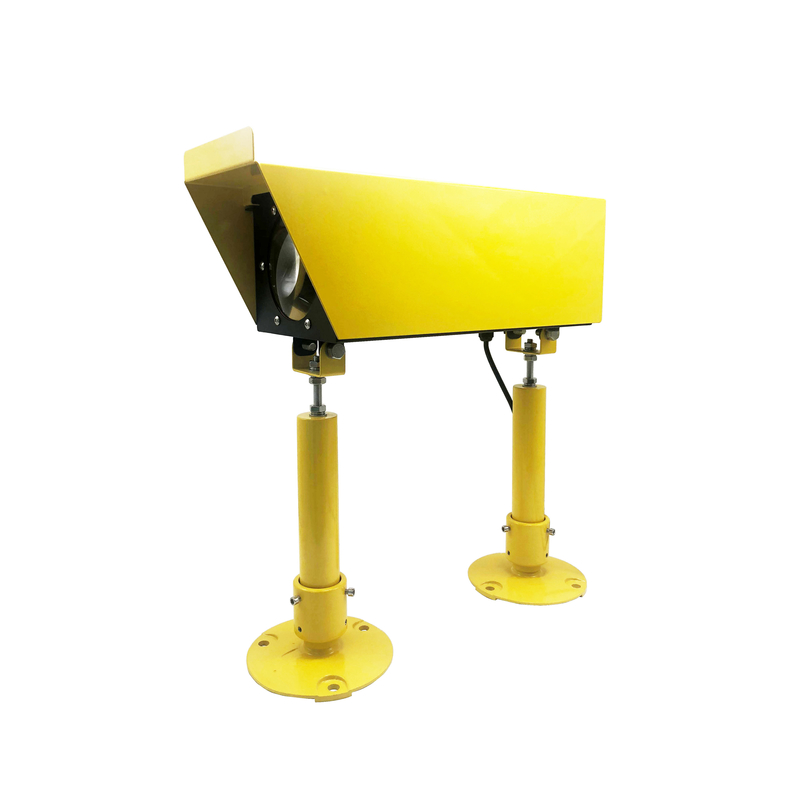

LED CHAPI Heliport Approach Path Indicators Emergency Helipad Airport Helideck

Place of Origin China
Brand Name Annhumg
Certification FAA
Model Number AH-HP-CHAPI
Product Details
Emitting Color:
Red/Green/White
Operation Mode:
24hours Operation
Product Weight(kg):
10
Lamp Body Material:
Aluminum Alloy
High Light:

FAA Heliport Approach Path Indicators

,

Emergency Heliport Approach Path Indicators

,

LED CHAPI Approach Path Indicators

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2,399.00 - $2,999.00/ Piece
Packaging Details
Plastic bag with paper carton.
Delivery Time
3-15days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Month
Product Description


AH-HP-CHAPI LED CHAPI Heliport Approach Path Indicators



Product Description



The LED CHAPI Heliport Approach Path Indicators (CHAPI) uses LED technology to provide the pilot with safe and accurate glide
slope on final approach to the helipad. A set of two LED CHAPI Light Housing Assemblies (LHAs) are seen by the pilot in combinations of white, green and red to indicate a path that is too high, too low or within the 6° ±0°15' glide slope.

CHAPI Visual Indication:
LED CHAPI Heliport Approach Path Indicators Emergency Helipad Airport Helideck

Compliance

ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1
FAA AC 150/5390-2B Heliport Design Guide

Features
Electrical

LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110, 240VAC), DC48V or others

Physical

Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Housing material is stainless steel which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling reduce the secondary damage to helicopters effectively

Optional

Clinometer
VHF pilot to ground remote control
Solar power system
Wireless Remote Control

Application

Permanent, Temporary, Emergency Helipad/Airport/Helideck
OFFSHORE/ ONSHORE USAGE


Main Parameter

Description Parameter
Mode
AH-HP-CHAPI
Light Source
LED
Available Colors
Red/Green/White
Working mode
Steady burning
Operation Mode
24hours operation
LED Life Experience(hours)
>100,000
Operating Voltage
AC220V
LED Power(W)
50W
Circuit Protection
Integrated
Body Material
Stainless steel
Leg material
Die casting aluminum
Mounting
140x M10
Dimension(mm)
455x520x184
Weight(kg)

10

Life Period
≥10years

LED CHAPI Heliport Approach Path Indicators Emergency Helipad Airport Helideck
