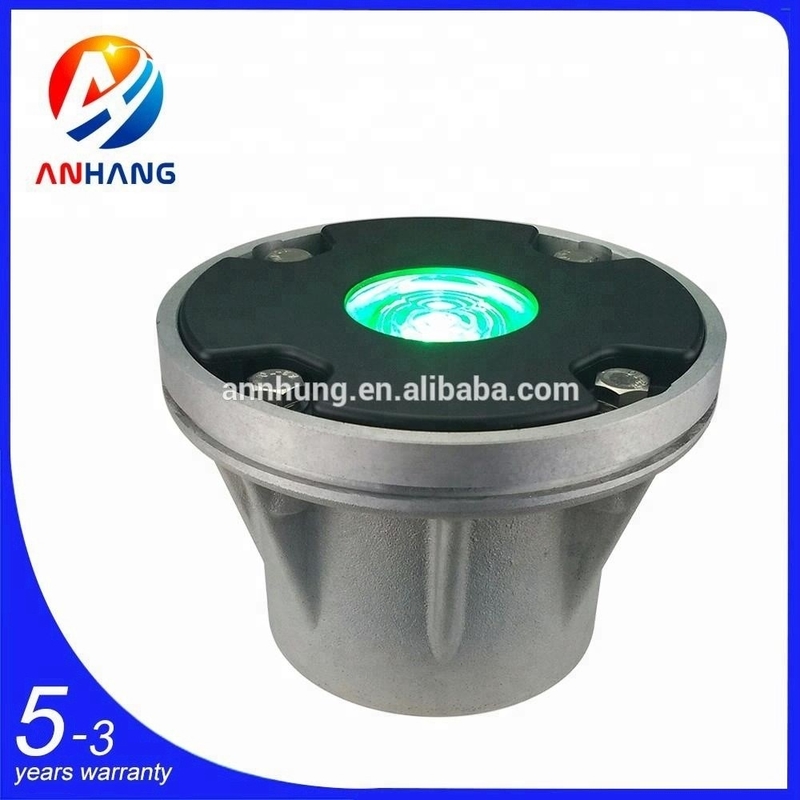

CAAC FAA LED Heliport Light / Helipad Landing Lights IP68
Product Details
| Light Intensity: | ≥ 100cd | Flash Rate: | Steady-burning Way |
|---|---|---|---|
| Light Source: | LED | Service Life Of LED: | ≥ 100,000hours |
| Highlight |
FAA LED Heliport Light,Helipad Landing Lights IP68 |
||
Product Description
Main Parameter
| Description | Parameter |
| Mode | AH-HP/A |
| Light intensity | ≥ 100cd |
| Light source | LED |
| Service life of LED | 100, 000hours |
| Signal mode | Steady-burning way |
| Operating voltage | AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V) |
| Emitting color | White or green or yellow |
| Power consumption | 20W |
| Overall size(mm) | Φ194 × 138 |
| Installation size(mm) | Φ199 × 146 |
| Ambient temperature | -55℃~+70℃ |
| Weight | 4.9kg |
| Protection standard | IP68 |
Compliance
The lights in accordance with ICAO and FAA regulations
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
Product Highlights
Product Description Main Parameter Description Parameter Mode AH-HP/A Light intensity ≥ 100cd Light source LED Service life of LED 100, 000hours Signal mode Steady-burning way Operating voltage AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V) Emitting color White or green or yellow Power consumption ...
120lm/W Heliport LED Flood Light White Color 110-240VAC Steady Burning
LED Surface Heliport Flood Light is used for illuminate the whole heliport area at night. It is specially designed for helipads, providing glare-free, uniform surface lighting for landing and loading activities. LED Surface Floodlights improve pilot depth perception by reflecting the surface of the ...
IP66 HAPI Polycarbonate 9000cd Helipad Landing Lights
The Helicopter Approach Path Indicator - HAPI system consists of a single lighting to provide a visual indication of the correct approaching path of the helicopter. The HAPI uses patented, LED-based optics to achieve the lowest power consumption, highest intensity and sharpest green/red transition. ...
FATO Solar Airfield Light Steady Burning Runway Edge Light White Blue Red Green Colors
AH-SA-A Serial Solar Airfield Light AH-SA-A Serial Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary airdrome. It could be used as Runway Edge Light, Taxiway Light, Threshold/End Light, Heliport Beacon, Low intensity Aviation ...
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
AH-LI-B2 LED Low-intensity L810 Double Aviation Obstruction Light Application AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than ...
