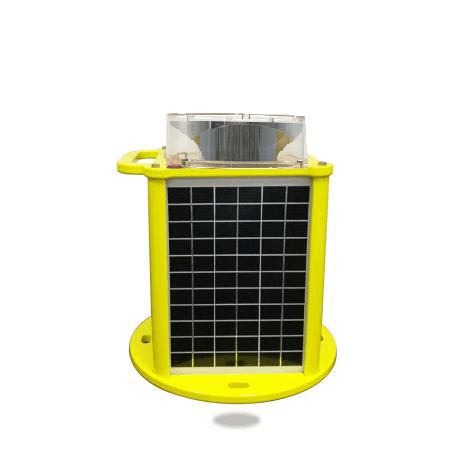

CE Ultra high intensity LED Solar Powered Marine Lanterns AH-ML-S7
Product Details
| Light Source: | LED | Available Colors: | Red, Green, Yellow, White, Blue, |
|---|---|---|---|
| Horizontal Output(degrees): | 360 | Vertical Divergence(degrees): | ≥10°or ≥5° |
| Operation Mode: | Dusk-to-dawn Automatically | LED Life Experience(hours): | >100,000 |
| Highlight |
Ultra high intensity Solar Marine Lantern,LED Solar Powered Marine Lanterns,AH-ML-S7 LED Solar Marine Lantern |
||
Product Description
● There is no need to open the light, the light flashing characteristics(IALA 366 flashes) could be remote controlled by IR
● Programmer easily. (Optional)
● GSM Monitoring as optional function, when fault happens, it will send out text message automatically.
|
SPECIFICATIONS
|
AH-ML-S7 LED Solar Powered Marine Lanterns
|
|
Light Characteristics
|
|
|
Light Source
|
LED
|
|
Available Colors
|
Red, Green, Yellow, White, Blue,
|
|
Visible Range(nm, AT@0.74)
|
3-8NM available (Standard:4-5NM)
|
|
Horizontal Output(degrees)
|
360
|
|
Vertical Divergence(degrees)
|
≥10°or ≥5°
|
|
Flash Characteristics
|
FL3S(0.2,2.8) (others are optional)
|
|
Operation Mode
|
Dusk-to-dawn Automatically (Built-in photocell)
|
|
LED Life Experience(hours)
|
>100,000
|
|
Electrical Characteristics
|
|
|
Operating Voltage
|
7.4Vdc or 12Vdc
|
|
Circuit Protection
|
Integrated
|
|
Solar Characteristics
|
|
|
Solar Module Type
|
Mono crystalline Silicon
|
|
Output(watts)
|
5W *4
|
|
Charging Regulation
|
Microprocessor controlled
|
|
Battery Characteristics
|
|
|
Battery type
|
Lithium ion Battery(NiMH, VRLA is optional)
|
|
Battery Capacity (Ah)
|
12AH as standard(Others are customized)
|
|
Nominal Voltage (V)
|
7.4V or 11.1V
|
|
Battery Service Life
|
Average 5 years
|
|
Automony(Day)
|
≥15days(Duty cycle=20%, Longer is customized)
|
|
Physical Characteristics
|
|
|
Body Material
|
UV protected Polycarbonate
|
|
Base Material
|
Powder-coated Die-casting aluminum
|
|
Mounting(mm)
|
200×200×Φ12
|
|
Dimension(mm)
|
250×250×370
|
|
Weight(kg)
|
5.5
|
|
Product Life Expectancy
|
≥10 years
|
|
Environmental Factors
|
|
|
Humidity
|
0~100%
|
|
Wind Speed
|
80m/s
|
|
Waterproof
|
IP68
|
|
Temperature(℃)
|
-20~80
|
|
Compliance
|
|
|
IALA
|
Signal colors compliant to IALA E-200-1
|
|
Options Available
|
|
|
|
GSM Cellphone Monitoring
|
|
|
RS232 communication port
|
|
|
GPS Sync flashing
|
|
|
Charging port & External battery charger
|
|
|
366 IALA flash characteristics adjustable
|
|
|
Infrared Programmer for flashing rate setting
|
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf
