FAA Waterproof White LED Aviation Obstruction Light Medium Intensity
  • FAA Waterproof White LED Aviation Obstruction Light Medium Intensity
  • FAA Waterproof White LED Aviation Obstruction Light Medium Intensity
  • FAA Waterproof White LED Aviation Obstruction Light Medium Intensity
  • FAA Waterproof White LED Aviation Obstruction Light Medium Intensity

FAA Waterproof White LED Aviation Obstruction Light Medium Intensity

Place of Origin China
Brand Name AnnHung
Certification ICAO FAA IALA
Model Number AH-MI-A2
Product Details
Light Source:
CREE High Intensity LED
Flash Characteristics:
20-60FPM - Type A (factory Setting: 20FPM)
Operating Voltage:
DC(12V, 48VDC) Or AC(110-240VAC) Or Others
Body Material:
UV Protected Polycarbonate
Weight(kg):
3.5
Waterproof:
IP66
Highlight:

Waterproof FAA Obstruction Lighting

,

Type A LED Aircraft Warning Lights

,

FAA Airplane Warning Light

Payment & Shipping Terms
Minimum Order Quantity
1piece
Price
CNY 5000-8000
Packaging Details
carton
Delivery Time
15 work days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
2000pieces per month
Product Description

Product description

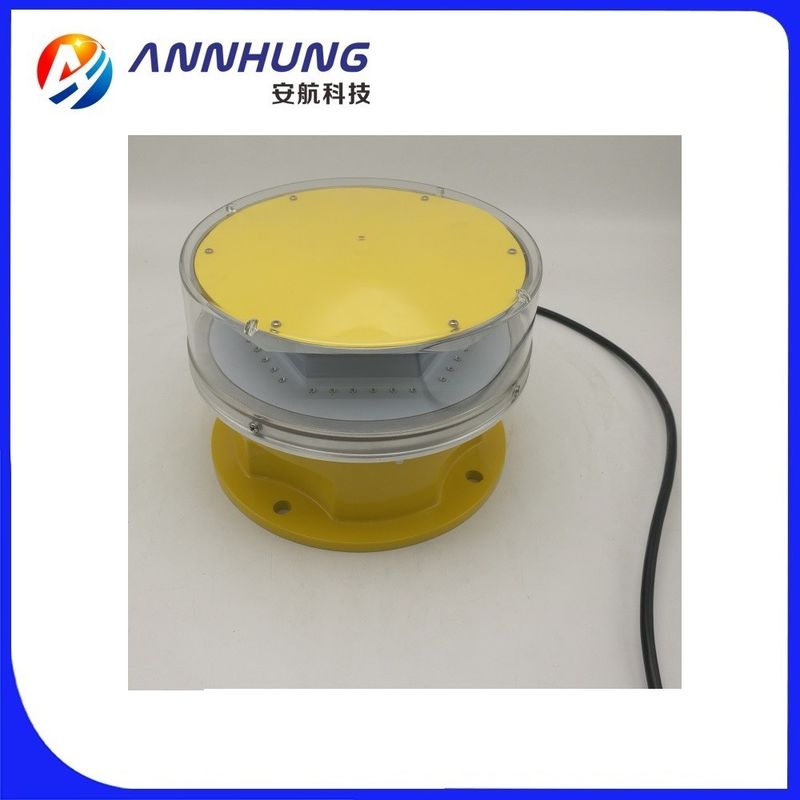

This LED Medium-intensity Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is more than 105meters.

Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.



FAA Waterproof White LED Aviation Obstruction Light Medium Intensity 0



ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light

FAA L-865

CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards





Application

AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 105-150meter, and most time work with low /medium intensity lights installed on the lower place.





Available Colors

White(Other color is optional)

Operating Voltage

DC(12V, 48VDC) or AC(110-240VAC) or others

Body Material

UV protected Polycarbonate

Waterproof

IP66









FAA Waterproof White LED Aviation Obstruction Light Medium Intensity 1
