24 Hours Working Solar Airfield Lighting Runway Edge Light Steady
Product Details
| Light Source: | LED | Available Colors: | Red, Green, Yellow, White, Blue |
|---|---|---|---|
| Intensity(cd): | 12cd | Horizontal Output(degrees): | 360 |
| Vertical Divergence(degrees): | ≥8 | Flash Characteristics: | Steady(Flashing Mode Is Optional) |
| Highlight |
Microprocessor Controlled Solar Airfield Lighting,12cd Solar Runway Lights,24 Hours Working Solar Airfield Lighting |
||
Product Description

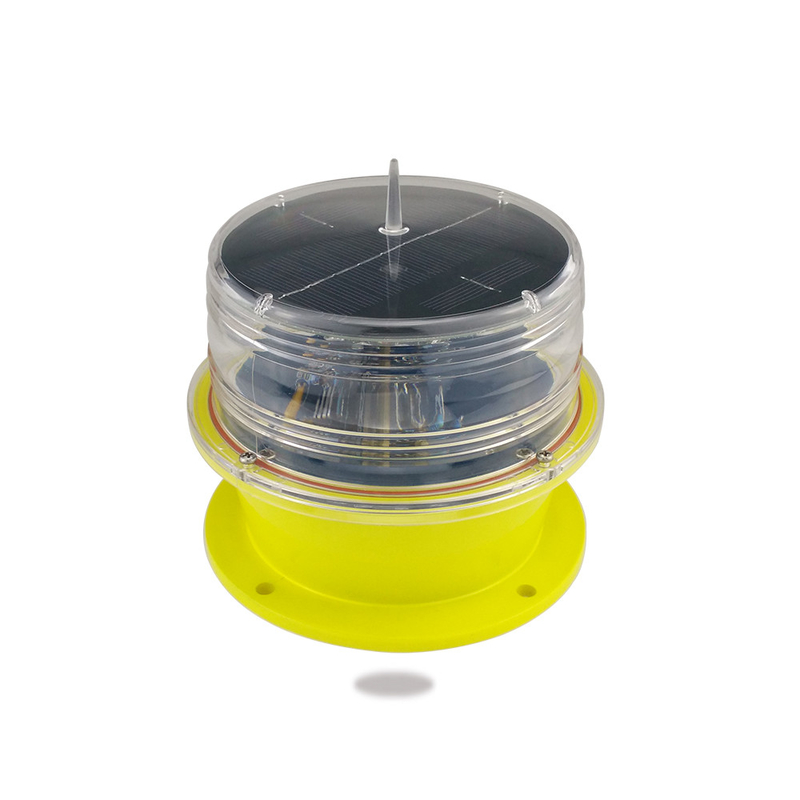

AH-SA-B Solar Airfield Light
Solar airfield
Solar heliport light
Solar airport light
Solar airport led light
Solar airport runway lights
Solar powered runway edge light
Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA-B.
Fragile coupling need to be paid separately if needed.
Compliance
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
ON/OFF button interface located under base
Optional
External battery charger for 110-240vac charging
Wireless remote control
Carry case for batch of lights
Application
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting
| Description | Parameter |
|
Operation Mode |
24hours working after switched ON |
|
LED Life Experience(hours) |
>100,000 |
|
Operating Voltage |
3.7 |
|
Circuit Protection |
Integrated |
|
Solar Module Type |
Mono crystalline Silicon |
|
Output(watts) |
1.8 |
|
Charging Regulation |
Microprocessor controlled |
|
Battery type |
Lithium ion battery |
|
Nominal Voltage (V) |
3.7 |
|
Battery Service Life |
3-5years |
|
Autonomy (hours) |
Steady: 40 |
|
Lamb Body Material |
Aluminum Alloy |
|
Base Material |
Powder-coated Die-casting aluminum |
|
Weight(kg) |
1 |
Company Information
Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
