FAA Lanter Solar Obstruction Light Stainless Steel Low Intesity UV Vibrations
  • FAA Lanter Solar Obstruction Light Stainless Steel Low Intesity UV Vibrations
  • FAA Lanter Solar Obstruction Light Stainless Steel Low Intesity UV Vibrations

FAA Lanter Solar Obstruction Light Stainless Steel Low Intesity UV Vibrations

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-LS-A1
Product Details
Lamb Body Material:
UV Protected Polycarbonate
Base Material:
Powder Coated Stainless Steel 304
Installation Size:
3/4inch Thread Hole(standard)
Overall Size (mm):
268*243*300
Emitting Color:
Red
Weight(kg):
3
High Light:

Stainless Steel Solar Obstruction Light

,

FAA Lanters Solar Obstruction Light

,

UV Vibrations Solar Aviation LED Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
7-15 work days
Payment Terms
T/T, Western Union
Supply Ability
2000Pieces for one month
Product Description

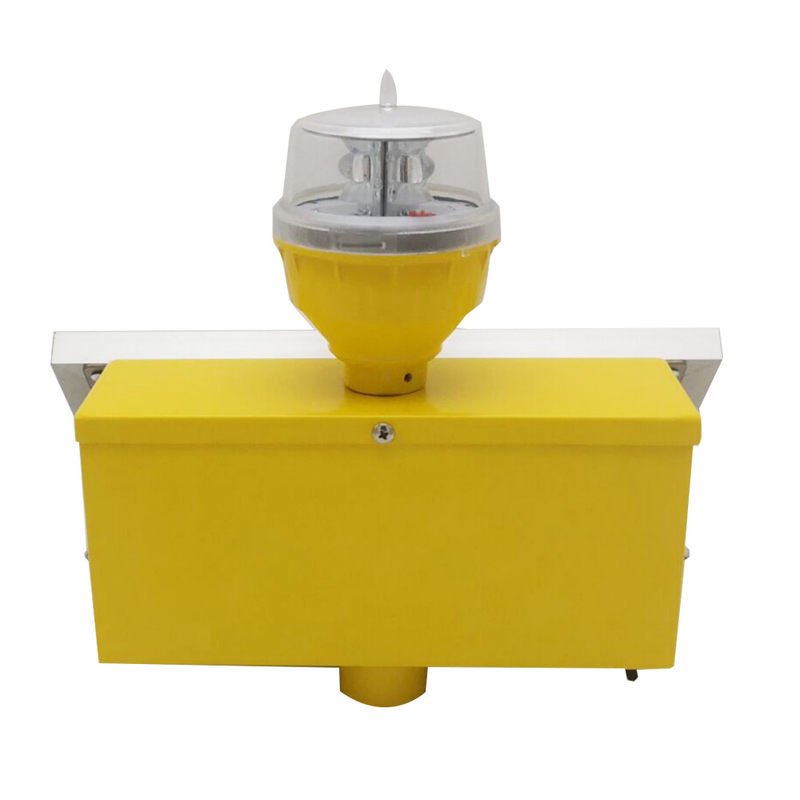

AH-LS-A1 LED Low-intensity L810 Solar Aviation Obstruction Light

AH-LS-A1 is a self-contained obstruction light which consist of solar panel, battery and lamp. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.

It is designed for marking top of obstacle that do not exceed 45 meters in height.

Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6-1, 6-2 Low Intensity Type A / B /E Obstruction Light
FAA L-810

Features
Electrical
3 high power CREE LED, make sure LED keep bright while use

Physical
With bird needle to prevent bird drop
UV & vibrations protected polycarbonate lens for converging light
Powder coated die casting aluminum base, light fastness, resist snow and rain
Battery box made of corrosion resistant 304 stainless steel
Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
Solar panel vertical degree is adjustable

System design
Solar panel as sensor(Photo diode) for day & night working mode (dusk to dawn mode)
ON/OFF button under base make local control easy
Steady/Flashing(20fpm) adjustable switch available
Solar panel angel is adjustable
Surge and lightning protection

Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Stainless steel needle strips for solar panel

Application
AH-LS-A1 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter

Description Parameter
Light Source LED
Flash Characteristics
Steady/Flashing(20fpm) adjustable
Operation Mode
Dusk-to-Dawn operation
LED Life Experience(hours) >100,000

Solar Module Type

Mono crystalline Silicon

Output(watts)

12W

Battery type

Lithium ion battery

Charging Regulation
Microprocessor controlled
Nominal Voltage (V)
12V
Ambient Temperature(℃)
-55~70
Humidity
0~90%
Wind Speed
80m/s
Waterproof IP65
FAA
L-810



FAA Lanter Solar Obstruction Light Stainless Steel Low Intesity UV Vibrations 0
