SUS304 Helipad Landing Lights Wind Cone Frangible Coupling PVC 80m/S
  • SUS304 Helipad Landing Lights Wind Cone Frangible Coupling PVC 80m/S
  • SUS304 Helipad Landing Lights Wind Cone Frangible Coupling PVC 80m/S

SUS304 Helipad Landing Lights Wind Cone Frangible Coupling PVC 80m/S

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-HP-W1
Product Details
Available Colors:
Red/White
Flash Characteristics:
Steady Burning
Body Material:
Stainless Steel 304
Base Material:
PVC
Waterproof:
IP65
Name:
Helipad Landing Lights
High Light:

SUS304 Helipad Landing Lights

,

Wind Cone Helipad Landing Lights

,

80m/S Heliport Elevated Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
15-30 work days
Payment Terms
T/T, Western Union
Supply Ability
1000Pieces for one month
Product Description

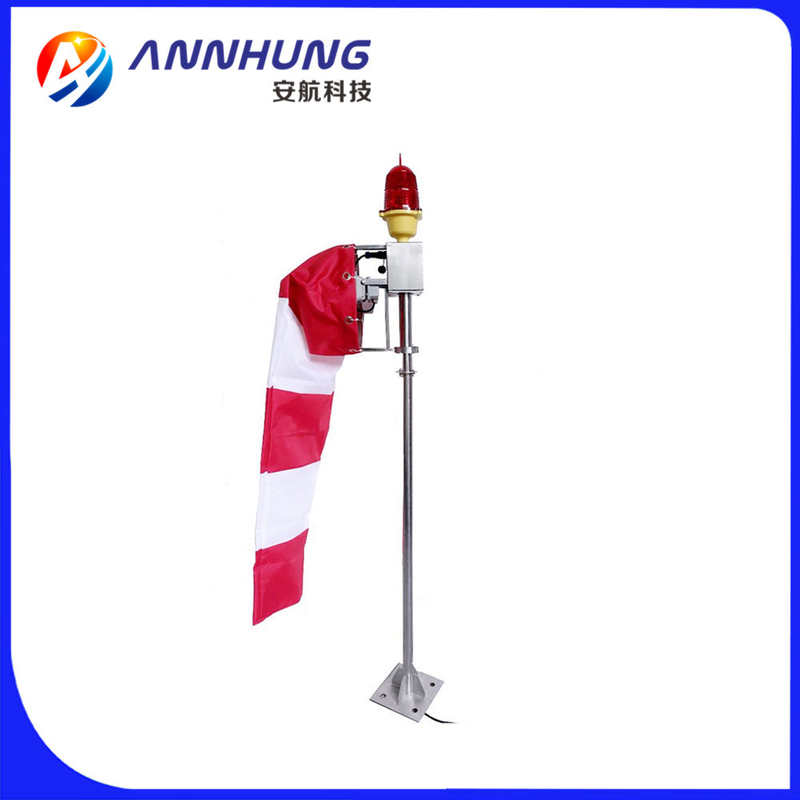

ICAO Internally Illuminated Heliport Wind Cone Frangible Coupling



An aerodrome shall be equipped with at least one wind cone as wind direction indicator.

The flood light for illumination is inside wind sock, it will rotate together with windsock too.

One obstruction light on top for aircraft warning.

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.1.1
FAA AC 150/5390-2B Heliport Design Guide

Features

Power supply available in DC(12-48VDC) or AC(110-240VAC)
Pole is made of corrosion resistance and wind resistance stainless steel 304(SS316 is optional)
One obstruction light on top, one flood light for illumination
Pole height is customized(1meter, 2meter, 2.5m, 3m, 4m, 5m...)
Windsock color is: orange(Nylon), red/white(PVC)

Windsock dimension:
Pole height:<4m, Length: 1.2m, big diameter: 300mm, small diameter: 150mm
Pole height: 4m-6m, Length: 2.4m, big diameter: 600mm, small diameter: 300mm
Pole height: >6m, Length: 3.6m, big diameter: 900mm, small diameter: 450mm
Other size is customized.

Frangible coupling is optional
Optional: 3 Metllaic cord for ground fixation at 120°space
Optional: Extra movable part of the base to be rotated to 90°to lower the windsock for maintenance
Optional: carry case for windcone


Description Parameter
Light Source LED
Available Colors
Red, White,
Flash Characteristics Steady
LED Life Experience(hours) >100,000
Ambient Temperature(℃)
-55~70
Humidity
0~95%
Wind Speed 80m/s
Waterproof IP65
ICAO
ICAO Annex 14 Volume ǁ Heliports 5.1.1
