50W Emergency Helipad Obstruction Light Steady Burning Powder Coated
Product Details
| Available Colors: | Yellow/Green/Red | Working Mode: | Steady Burning |
|---|---|---|---|
| Operation Mode: | 24hours Operation | Operating Voltage: | AC220V |
| Power(W): | 50W | Body Material: | Powder-coated Die-casting Aluminum |
| Weight(kg): | 10 | LED Life Experience(hours): | >100,000 |
| Highlight |
50W Emergency Helipad Obstruction Light,Steady Burning Helipad Obstruction Light,Powder Coated Helicopter Landing Lights |
||
Product Description

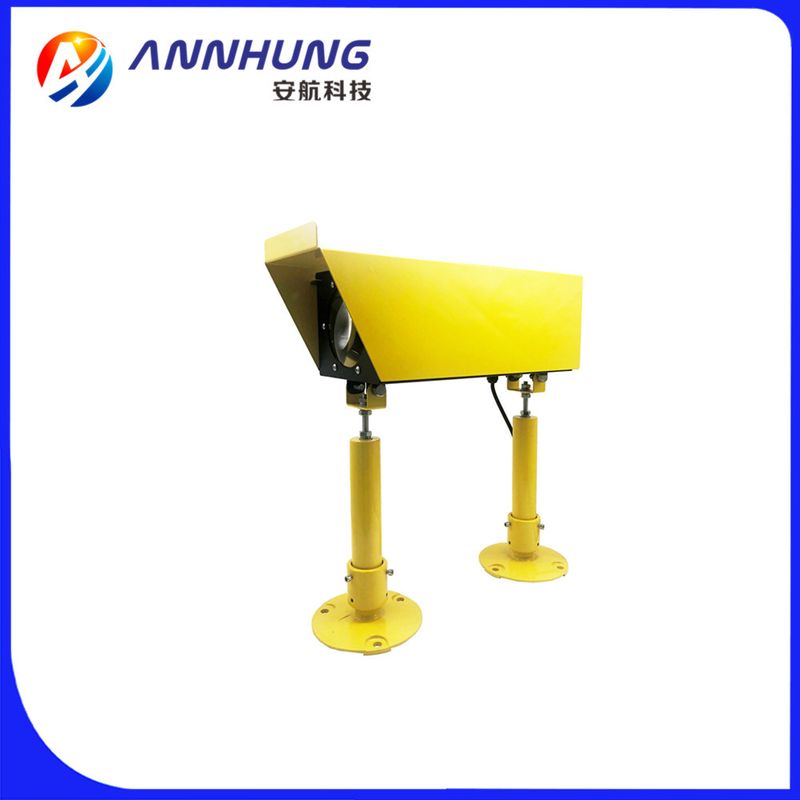

LED Visual Approach Slope Indicator Emergency Helipad Steady burning
| SPECIFICATIONS |
AH-HP-VASI LED Visual Approach
Slope Indicator
|
| Light Characteristics | |
| Light Source | LED |
| Available Colors |
Yellow/Green/Red
|
|
Working mode
|
Steady burning
|
|
Operation Mode
|
24hours operation
|
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
|
Operating Voltage
|
AC220V
|
| Power(W) | 50W |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material |
Powder-coated Die-casting aluminum
|
| Mounting |
140x M10
|
| Dimension(mm) |
520x184x455
|
| Weight(kg) |
10 |
| Product Life Expectancy | 10 years Plus |
| Environmental Factors | |
| Humidity |
10~90%
|
| Wind Speed |
80m/s
|
| Waterproof | IP65 |
| Compliance | |
| ICAO |
ICAO Annex 14 Volume II –Figure 5-11
|
| FAA |
FAA AC 150/5390-2B Heliport Design Guide
|
| Options Available | |
|
Infrared LED for pilot using NVG
|
|
|
VHF Pilot to Ground Remote Control
|
|
|
Controller for power supplying and turn ON/OFF
|
|
|
Solar powered system
|
Product datasheet download: download AH-HP-VASI LED Visual Approach Slope Indi...
