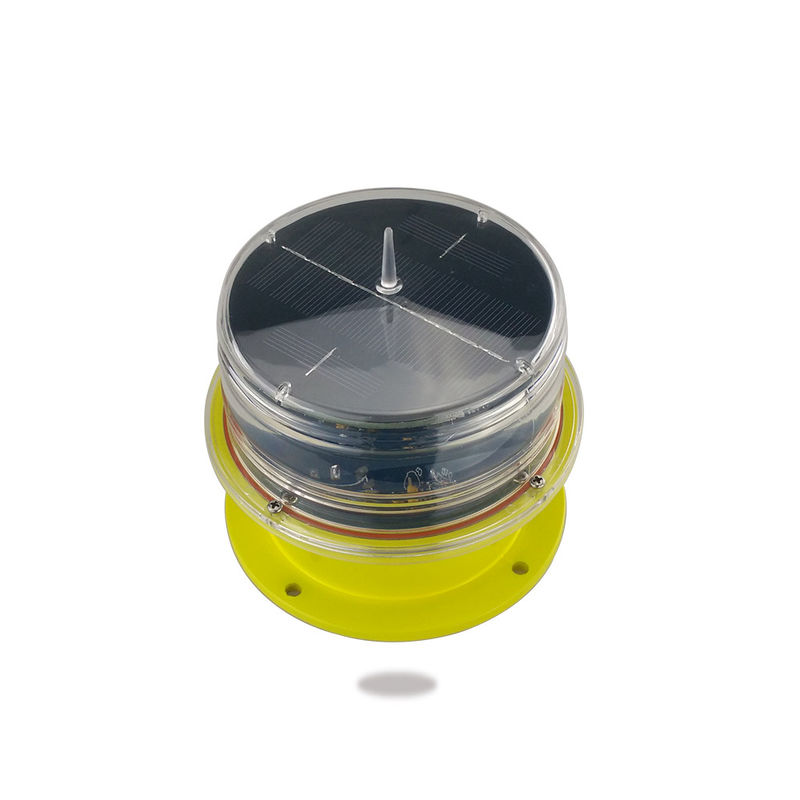

TLOF 12cd Runway Edge Lighting Portable Airfield Silicon Solar 80m/S
Product Details
| Available Colors: | Red, Green, Yellow, White, Blue | Intensity(cd): | 12cd |
|---|---|---|---|
| Horizontal Output(degrees): | 360 | Vertical Divergence(degrees): | ≥8 |
| Flash Characteristics: | Steady | Operation Mode: | 24hours Working After Switched ON |
| Weight(kg): | 1 | ||
| Highlight |
12cd Runway Edge Lighting,Silicon Solar Runway Edge Lighting,80m/S Solar Airfield Light |
||
Product Description
FATO Taxiway lighting Runway edge lighting TLOF Solar Airfield Light
| Description | Parameter |
| Light Source | LED |
| Available Colors |
Red, Green, Yellow, White, Blue
|
| Flash Characteristics | Steady |
| LED Life Experience(hours) | >100,000 |
| Operation Mode |
24hours working after switched ON
|
|
Lamb Body Material
|
Aluminum Alloy
|
|
Base Material
|
Powder-coated Die-casting aluminum
|
| Weight(kg) | 1 |
| Product Life Expectancy | ≥10 years |
| Storage temperature(℃) | -55~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| ICAO |
Annex 14 Volume ǁ Heliports 5.3
|
Product datasheet download: download AH-SA-B Solar Airfied Light.pdf
Company Information
Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
Product Highlights
FATO Taxiway lighting Runway edge lighting TLOF Solar Airfield Light AH-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA-B. Compliance ICAO Annex 14 ...
