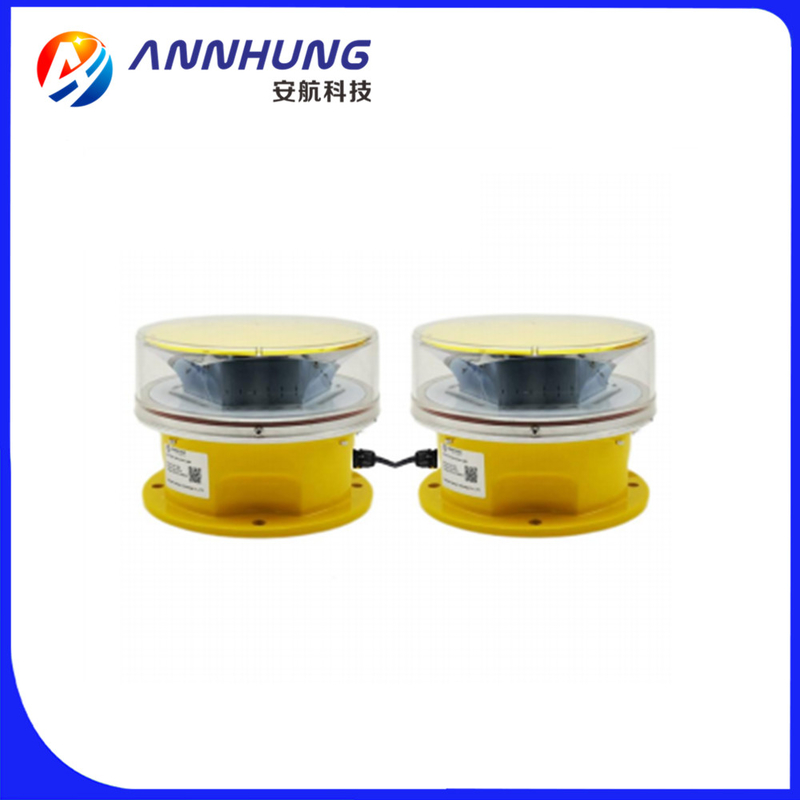

Main Standby LED Aviation Obstruction Light 20FPM IP66 Medium Intensity
  • Main Standby LED Aviation Obstruction Light 20FPM IP66 Medium Intensity
  • Main Standby LED Aviation Obstruction Light 20FPM IP66 Medium Intensity

Main Standby LED Aviation Obstruction Light 20FPM IP66 Medium Intensity

Place of Origin China
Brand Name ANNHUNG
Certification ICAO CE
Model Number AH-MI-B2-D
Product Details
Available Colors:
Red
Intensity(cd):
≥2000cd
Operating Voltage:
DC(12V, 24V, 36V, 48V) Or AC(110-240VAC)
Mounting:
190×190×θ12*2
Dimension(mm):
229×229×168 * 2
Weight(kg):
2.5*2
Body Material:
UV Protected Polycarbonate
Base Material:
Powder-coated Die-casting Aluminum
High Light:

Main Standby LED Aviation Obstruction Light

,

LED Aviation Obstruction Light 20FPM

,

IP66 Solar Aviation Obstruction Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
7-15work days
Payment Terms
T/T, Western Union
Supply Ability
2000Pieces for one month
Product Description

Medium-intensity Type B Double Aviation Obstruction Light Built-in photocell



This LED Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is more than 45meters. Both lamp working as main-standby, when main lamp fail, standby lamp turn on automatically.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B Obstruction Light

Features

Electrical

CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)

Physical

Unique design and UV protected polycarbonate reflector for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

System design

Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Main-standby mode

Optional

Dry contact Alarm output for remote monitoring
Solar Power system

Application

AH-MI-B2-D medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.


Description Parameter
Product name
LED Dual White & Red Medium-intensity
Aviation Obstruction Light
Model AH-MI-A2/B2
Operation Mode
Dusk-to-dawn, main standby as standard.
Vertical Divergence(degrees) 3
Instantaneous power(W)
45W
Average Power(W)
3W(20fpm)
Circuit Protection
Integrated
Weight(kg)
2.5*2
Humidity
0%-100%
Wind Speed
80m/s
ICAO
