36cd Runway Edge Lighting Monocrystalline Silicon ICAO For Solar Airfield
  • 36cd Runway Edge Lighting Monocrystalline Silicon ICAO For Solar Airfield
  • 36cd Runway Edge Lighting Monocrystalline Silicon ICAO For Solar Airfield

36cd Runway Edge Lighting Monocrystalline Silicon ICAO For Solar Airfield

Place of Origin China
Brand Name Annhung
Certification CE, RoHS,ICAO
Model Number AH-SA/A
Product Details
Colors:
White, Blue,Red/Green, Yellow/White, Green, Red, White/White, Etc
Light Intensity(cd):
≥36cd(White, Red, Green, )
Installation Size:
200×200×M10
Overall Size (mm):
250×250×250
Weight(kg):
5
ICAO:
Annex 14
High Light:

Monocrystalline Silicon Runway Edge Lighting

,

36cd Runway Edge Lighting

,

ICAO Helipad Taxiway Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton
Delivery Time
7-15work days
Payment Terms
T/T, Western Union, D/P
Supply Ability
1000pieces for one month
Product Description

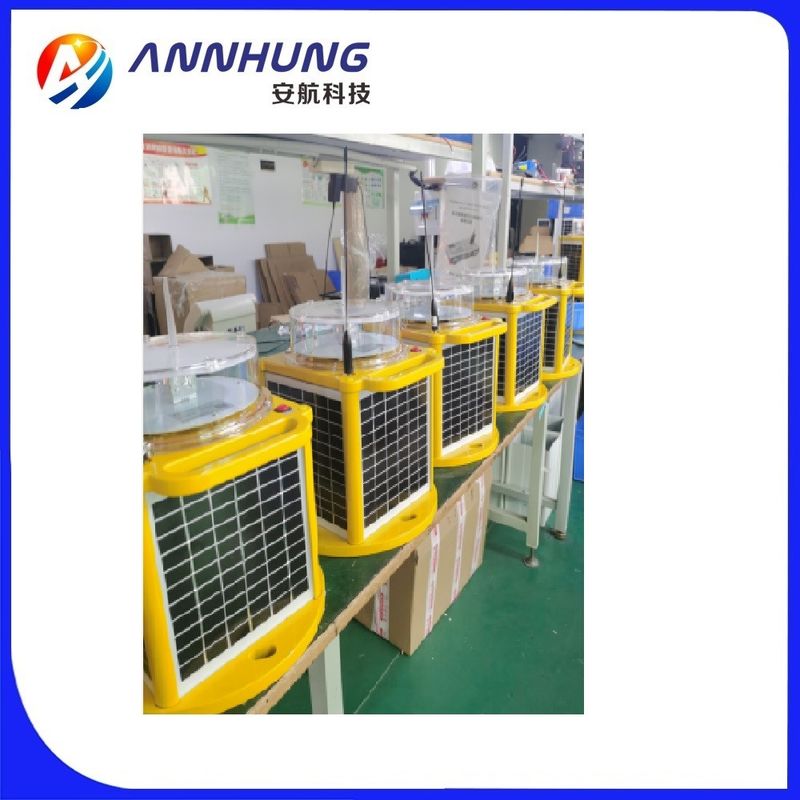

Solar Airfield Light Runway Edge Lighting Helipad Taxiway 36cd Red/Green

AH-SA-A Serial Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary airdrome. It could be used as Runway Edge Light, Taxiway Light, Threshold/End Light, Heliport Beacon, Low intensity Aviation Obstruction Light, Heliport Light, FATO, TLOF, Flight Path Alignment Guidance Light, Aiming Point Light, Flood Light, etc. Fragile coupling need to be paid separately if needed.

Compliance

ICAO Annex 14 Vol. I (7th. Edition, July 2016)
ICAO Annex 14 Volume ǁ Heliports 5.3

Features

Electrical

LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

Physical

Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing, UV resistance, shockproof and corrosion proof.
Powder coated die casting aluminum base
4-side monocrystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon

System design

ON/OFF button interface
Remote Controlled By wireless remote controller

Optional

External battery charger(110-240VAC)
NVG - compatible infrared (IR) LED
GPS sync flashing

Application

Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting, Runway end light
Helipad taxiway
Emergency operations

Description Parameter
Light Source
LED
Flash Characteristics
Steady(Flashing mode is optional)
LED Life Experience(hours)
>100,000
Solar Module Type
Mono crystalline Silicon
Charging Regulation
Microprocessor controlled
Battery type
Lithium ion battery
Lamb Body Material
Aluminum Alloy
Base Material
Powder-coated Die-casting aluminum
Product Life Expectancy
Average 10 years
ICAO
Annex 14
Optional


External battery charger

NVG - compatible infrared (IR) LED

Frangible coupling base
