Fragile Coupling 50FPM Helipad Landing Lights 220VAC 80m/S
  • Fragile Coupling 50FPM Helipad Landing Lights 220VAC 80m/S

Fragile Coupling 50FPM Helipad Landing Lights 220VAC 80m/S

Place of Origin China
Brand Name Annhung
Certification CE, RoHS,ICAO
Model Number AH-HP/RG
Product Details
Color:
Yellow, Red/Green
Angle(°):
±30°
Working Mode:
Flashing 50FPM
Light Overall Size(mm):
480×460×176
Installation Size(mm):
Θ140×θ12
Weight(kg):
3.5
High Light:

50FPM Helipad Landing Lights

,

Fragile Coupling Helipad Landing Lights

,

80m/S Airport Runway Lights

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton
Delivery Time
7-15work days
Payment Terms
T/T, D/P, Western Union
Supply Ability
2000Pieces for one month
Product Description

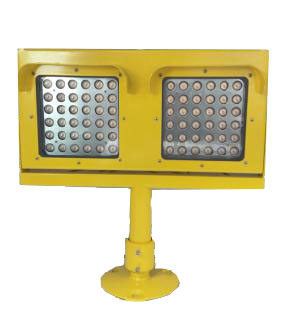

Runway Guard Light Helipad taxiway Flashing 50FPM Yellow Red/Green 220VAC


The AH-HP-RG offers a quick and effective solution to airfields, in support of efforts to prevent unnecessary runway incursions and enhance over-all airfield safety. Runway Guard Light is an elevated unidirectional flashing yellow light fixture that provides a distinctive warning to pilots that they are approaching a runway holding position and are about to enter an active runway.

Compliance

ICAO Annex 14 Volume
FAA AC 150/5345

Features

Electrical

Significant reduction of maintenance costs and re-lamping expenses through long-lasting LED technology- more than 100,000 hours under actual operating conditions
Very less power could meet the standard intensity request

Physical

Fragile coupling avoid secondary damage
Permanent installation for commercial, defense and remote airfields

Optional

RF Control: Wireless remote operation capabilities
Solar powered system

Application

Airport,
Helipad taxiway
Emergency operations
Airport/Airdrome

DescriptionParameter
Light Source
LED
Emitting Color
Yellow, Red/Green (others are optional)
Angle(°)
±30°
Working mode
Flashing 50fpm
Operation Mode
24hours, photocell is optional
LED Life Experience(hours)
>100,000
Operating Voltage
220VAC, 110VAC, 48VDC or others
Light Body Material
Aluminum alloy
Product Life Expectancy
Average 5 years
Ambient Temperature(℃)
-55~70
Humidity
10~900%
Wind Speed
80m/s
Waterproof
IP65
Weight(kg)
3.5




Company Information


Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
