Quality Lithium Ion Battery Airport Runway Lights 433MHZ 240VAC Portable factory
<
Quality Lithium Ion Battery Airport Runway Lights 433MHZ 240VAC Portable factory
Quality Lithium Ion Battery Airport Runway Lights 433MHZ 240VAC Portable factory
>

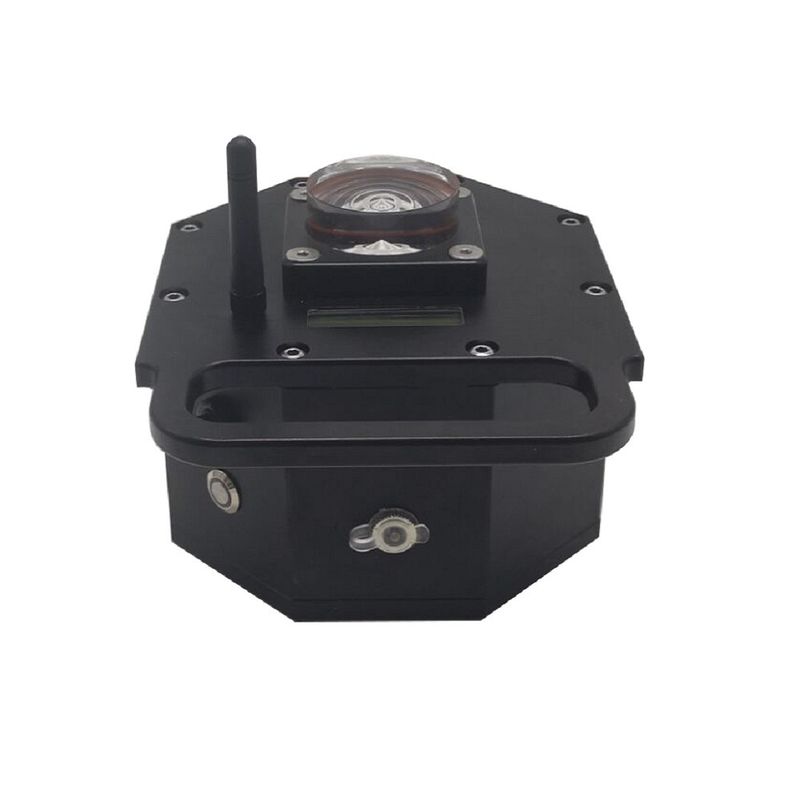

Lithium Ion Battery Airport Runway Lights 433MHZ 240VAC Portable

Brand Name: Annhung
Model Number: AH/PALS
Place of Origin: China
Certification: CE, RoHS,ICAO
Minimum Order Quantity: 1
Supply Ability: 1000pieces for one month

Product Details


Colors: Red, Green, Yellow, White, Blue, IR LED Life Experience (hours): >100,000
Rechargable Battery: Lithium Ion Battery Overall Size (mm): 800*600*360 (12pcs Lights In)
Material: PP Alloy Resin Light Source: Ultra High Intensity LED
Highlight

Lithium Ion Battery Airport Runway Lights

,

433MHZ Airport Runway Lights

,

240VAC Portable Airfield Light

Product Description

Portable Airfield Lighting Steady 24hours working Solar charging system



Highly portable and easy to install the portable landing zone kit provides temporary illumination of any military or civilian helicopter landing surface or airfield.

System design

LCD screen on front panel for battery status
ON/OFF button located beside base

Physical

The system is self-contained in a easy to transport ruggedized suitcase(with wheels and handle) that includes a set of light units and other equipments to support the landing.
Portable lights are supplied by rechargeable batteries and an “drop in” charger in suitcase. The batteries are recharged by simply inserting the lights into their slot and connecting the external power to the suitcase.

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC NO. 150/5354-50B

Optional

“ground to ground” wireless remote controller allows to manage the system from remote
Solar charging system

Description Parameter
Flash Characteristics
Steady(Flashing mode is optional)
Operation Mode
24hours working after switched ON
Overall Size (mm)
170×132×112
Weight (kg)
2.4
Suitecase

Material
PP Alloy resin
Overall Size (mm)
800*600*360 (12pcs lights in)
Battery charging input
110-240VAC
Wireless Remote Control

Frequency
433MHZ
Size (mm)
83*30*550 (antenna included)
Remote control
ON/OFF, flashing rate, emergency mode
Power Supply
3.7VDC for battery recharge by 90-230 VAC
Battery charger
Foldable Solar Panel

Folded sizes (mm)
410*300*30
Unfolded sizes (W*L)
1440*410
Nominal system voltage
18V
Nominal rated power
120W
Anchoring Stakes
Stainless Steel



Application

Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting
Helipad taxiway
Emergency operations





Company Information


Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
