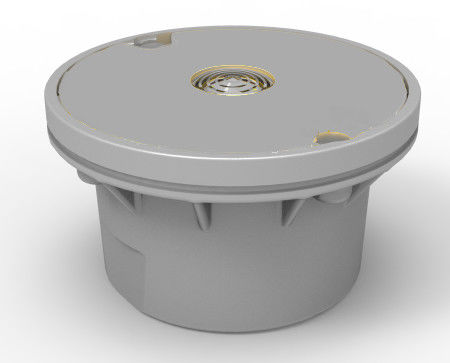

Die Casting Aluminum LED Heliport Light TLOF Steady Burning 7.5W
  • Die Casting Aluminum LED Heliport Light TLOF Steady Burning 7.5W

Die Casting Aluminum LED Heliport Light TLOF Steady Burning 7.5W

Place of Origin China
Brand Name Annhung
Certification CE, RoHS,ICAO
Model Number AH-HP-I Serial
Product Details
Colors:
Green, White, Yellow, Blue, Red
Intensity(cd):
ICAO Standard, Refer To Photometric Table
Horizontal Degree(°):
Omnidirection (360°)
Vertical Degree(°):
ICAO Specification
Weight(kg):
4
Body Material:
Die-casting Aluminum
High Light:

Die Casting Aluminum LED Heliport Light

,

TLOF LED Heliport Light

,

7.5W Helipad Obstruction Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton
Delivery Time
7-15work days
Payment Terms
D/P, T/T, Western Union
Supply Ability
1000
Product Description

Serial LED Heliport Inset Light Steady - burning Green Aiming Point Light


Heliport Inset light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.

It could be used as Aiming point light, perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway, Flight path alignment guidance lighting, etc. The emitting color is green or yellow or white or blue.

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAAC MH 5001—2013 Aerodrome technical standards
CAAC MH 5013—2014 Technical Standards of Civil Heliports

Features

Electrical

Ultra high intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V

Physical

Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by color powder coasted which have good corrosion protection and load bearing.
IP68 waterproof ensure light work fine underground

Optional

Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Light intensity adjustable

Application

Helipad/Heliport TLOF areas
Heliport FATO ares
Helipad Runway
Helipad taxiway
Aiming point light

Description Parameter
Light Source
CREE Ultra high intensity LED
Flash Characteristics
Steady burning
Operation Mode
24hours operation
LED Life Experience(hours)
>100,000
Operating Voltage
110-240VAC, 48VDC, 24VDC or others
Power(W)
≤7.5W
Overall size(mm)
Θ220×133.47
Installation size(mm)
Θ225×145-M10*2
Product Life Expectancy
≥10 years
