NVG Pilot LED Aviation Obstruction Light GPS SNYC 40-60FPM High Intensity
  • NVG Pilot LED Aviation Obstruction Light GPS SNYC 40-60FPM High Intensity
  • NVG Pilot LED Aviation Obstruction Light GPS SNYC 40-60FPM High Intensity

NVG Pilot LED Aviation Obstruction Light GPS SNYC 40-60FPM High Intensity

Place of Origin China
Brand Name Annhung
Certification CE, RoHS,ICAO
Model Number AH-HI-A0
Product Details
Colors:
White
Intensity(cd):
≥200000cd(Daytime) (ICAO Type A)
Horizontal Output(degrees):
90
Vertical Divergence(degrees):
3-7
Average Power(W):
<76W(40fpm)
Weight(kg):
10
High Light:

GPS SNYC LED Aviation Obstruction Light

,

NVG Pilot LED Aviation Obstruction Light

,

60FPM High Intensity Obstruction Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton
Delivery Time
7-15work days
Payment Terms
T/T, Western Union, D/P
Supply Ability
1000pieces for one month
Product Description

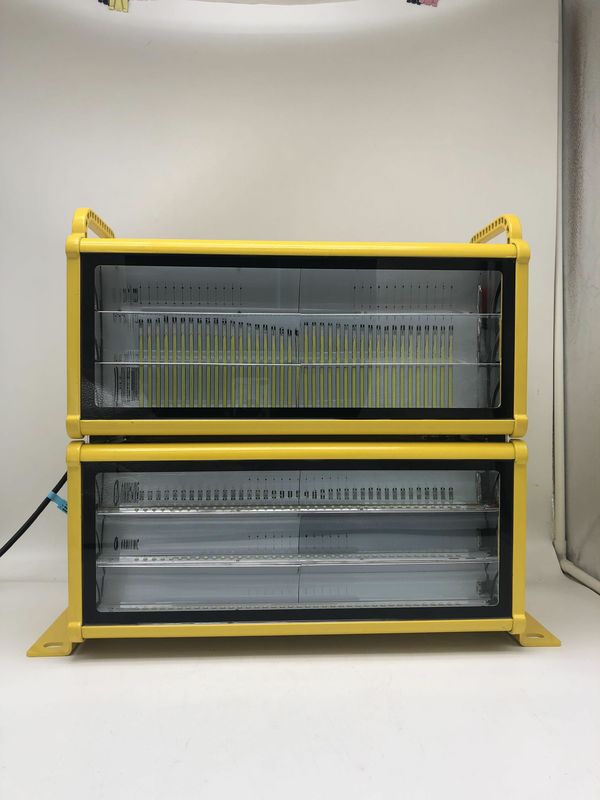

High-intensity Type A Aviation Obstruction Light GPS SNYC 40-60FPM



This High-intensity Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 High Intensity Type A Obstruction Light
FAA L-856, L-857

Features

Electrical

CREE ultra high intensity LED as light source saving power
Power supply available in DC(48V) or AC(110V, 240V)

Physical

Unique design and UV protected polycarbonate lens for converging light and saving LED power
UV protection Powder coated bright yellow color base make better visibility
Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light

System design

Built-in photocell for day/twilight/night operation
Surge and lightning protection

Optional

Alarm contact for remote monitoring
Infrared LED for pilot using NVG
User adjustable flashing rate(40, 50, 60 flashes/minute)
GPS synchronization
Solar powered system

Application

AH-HI-A0 High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.

Description Parameter
Light Source
CREE high intensity LED
Operating Voltage
DC(48VDC) or AC(110, 240V) or others
Average Power(W)
<76W(40fpm)
Circuit Protection
Integrated
Body Material
Polycarbonate
Base Material
Powder coated die-casting aluminum
Mounting
470×100×θ12
Dimension(mm)
508×186×236
Weight(kg)
10
Humidity
0%-100%
Temperature(℃)
-55˚C ~ 70˚C
Wind Speed
80m/s
Waterproof
IP66
FAA
L-856, L-857



NVG Pilot LED Aviation Obstruction Light GPS SNYC 40-60FPM High Intensity 0



Company Information


Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
