L810 SUS304 Base Solar Aviation Obstruction Light UV Protected Sync Flashing
Product Details
| Name: | Low-intensity L810 Double Solar Aviation Obstruction Light | Light Source: | LED |
|---|---|---|---|
| Installation Size: | 3/4inch Thread | Overall Size (mm): | 243×300×268 |
| Weight(kg): | 3.5 | Wind Speed: | 80m/s |
| Highlight |
SUS304 Base Solar Aviation Obstruction Light,UV Protected Solar Aviation Obstruction Light,Sync Flashing Aircraft Warning Light |
||
Product Description

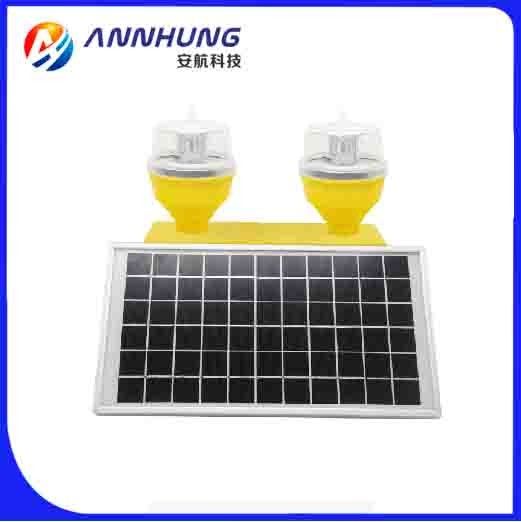

L810 Double Solar Aviation Obstruction Light Red Dusk-to-Dawn operation
| Description | Parameter |
|
Light Source
|
LED
|
|
Emitting Color
|
Red
|
|
Intensity(cd)
|
＞32.5cd
|
|
Horizontal Output(degrees)
|
360
|
|
Vertical Divergence(degrees)
|
≥10
|
|
Flash Characteristics
|
Steady/20FPM adjustable
|
|
Operation Mode
|
Main-standby, Dusk-to-Dawn operation
|
|
LED Life Experience(hours)
|
>100,000
|
|
Battery type
|
Lithium ion battery
|
|
Lamb Body Material
|
UV protected Polycarbonate
|
|
Base Material
|
Powder-coated Die-casting aluminum
|
|
Ambient Temperature(℃)
|
-35~70
|
|
Wind Speed
|
80m/s
|
|
Waterproof
|
IP65
|
Company Information
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
Product Highlights
L810 Double Solar Aviation Obstruction Light Red Dusk-to-Dawn operation There are two lamps on the battery box, one is main lamp, another is standby. When main lamp fail, standby light turn on automatically. Compliance ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B ...
