VRLA Solar Aircraft Warning Lights UV Polycarbonate 20FPM Medium Intensity
Product Details
| Name: | Medium-intensity Type B L864 Solar Aviation Obstruction Light | Light Source: | Ultra High Intensity LED |
|---|---|---|---|
| Installation Size: | 200×200×M10 | Overall Size (mm): | 450×400×320 |
| Weight(kg): | 7 | Battery Type: | Lithium Ion Battery ( VRLA Is Optional) |
| Highlight |
VRLA Solar Aircraft Warning Lights,UV Polycarbonate Aircraft Warning Lights,20FPM Medium Intensity Obstruction Light |
||
Product Description

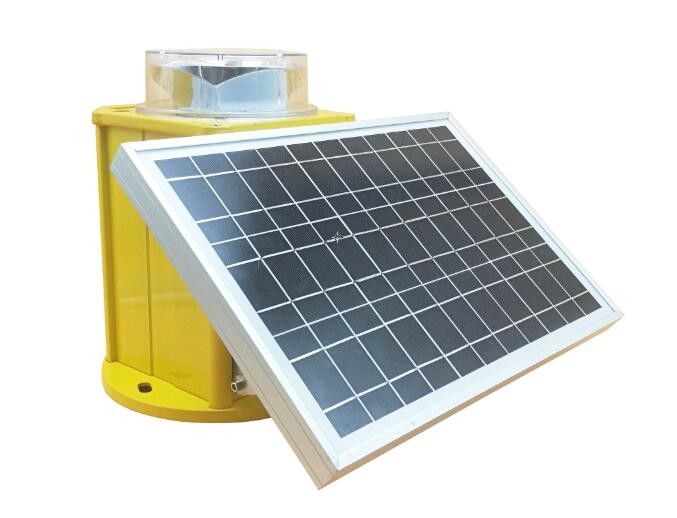

FAA L864 Solar Powered Medium Intensity Aircraft Warning Lights Red 20FPM
| Description | Parameter |
Light Source | Ultra high intensity LED |
Emitting Color | Red |
Intensity(cd) | ＞2000cd(Night) |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | ≥3 |
Flash Characteristics | Flashing 20FPM |
Operation Mode | Dusk-to-Dawn operation(Solar panel as photocell) |
Photocell sensitity | 50-300Lux |
Lamb Body Material | UV protected Polycarbonate |
Base Material | Die casting aluminum |
Ambient Temperature(℃) | -35~80 |
Humidity | 0~95% |
Wind Speed | 80m/s |
Waterproof | IP66 |
Company Information
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
Product Highlights
FAA L864 Solar Powered Medium Intensity Aircraft Warning Lights Red 20FPM This Medium-intensity Type B Aviation Obstruction Light flashing RED color, designed for marking top of obstacle which height is between 45 to 105 meters. Compliance ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 ...
120lm/W Heliport LED Flood Light White Color 110-240VAC Steady Burning
LED Surface Heliport Flood Light is used for illuminate the whole heliport area at night. It is specially designed for helipads, providing glare-free, uniform surface lighting for landing and loading activities. LED Surface Floodlights improve pilot depth perception by reflecting the surface of the ...
IP66 HAPI Polycarbonate 9000cd Helipad Landing Lights
The Helicopter Approach Path Indicator - HAPI system consists of a single lighting to provide a visual indication of the correct approaching path of the helicopter. The HAPI uses patented, LED-based optics to achieve the lowest power consumption, highest intensity and sharpest green/red transition. ...
FATO Solar Airfield Light Steady Burning Runway Edge Light White Blue Red Green Colors
AH-SA-A Serial Solar Airfield Light AH-SA-A Serial Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary airdrome. It could be used as Runway Edge Light, Taxiway Light, Threshold/End Light, Heliport Beacon, Low intensity Aviation ...
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
AH-LI-B2 LED Low-intensity L810 Double Aviation Obstruction Light Application AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than ...
