366 IALA Solar Marine Lanterns PC Housing For 12NM Safe Navigation
Product Details
| Name: | AH-ML-S0 LED Solar Powered Marine Lanterns | Colors: | White, Blue, Red, Green, Yellow |
|---|---|---|---|
| Horizontal Output(degrees): | 360 | Vertical: | 5 |
| Nominal Voltage: | 12Vdc | Circuit Protection: | Integrated |
| Highlight |
366 IALA Solar Marine Lanterns,PC Housing Solar Marine Lanterns,12NM Solar Navigation Lights |
||
Product Description
Solar Marine Lanterns for 12 NM Safe Navigation 366 IALA light characteristics
| Description | Parameter |
|
Light Source
|
LED
|
|
Visible Range(NM)
|
8-12 (AT@0.74)
|
|
Flash Characteristics
|
Adjustable 366 IALA light characteristics
|
|
Solar Module Type
|
Mono crystalline Silicon
|
|
Charging Regulation
|
Microprocessor controlled
|
|
Battery type
|
Lithium ion battery(other type is optional)
|
|
Body Material
|
UV protected Polycarbonate
|
|
Base Material
|
Powder-coated Die-casting aluminum
|
|
Mounting(mm)
|
200×200×Φ12
|
|
Dimension(mm)
|
250×250×530
|
|
Weight(kg)
|
10 |
|
Humidity
|
0~100%
|
|
Wind Speed
|
80m/s
|
|
Waterproof
|
IP68
|
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf
Product Highlights

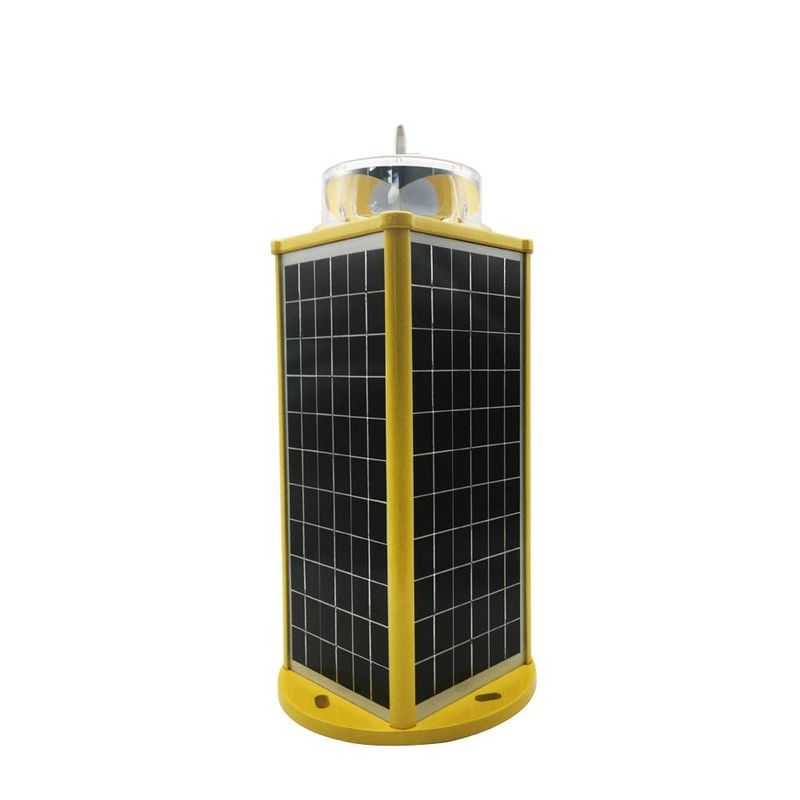

Solar Marine Lanterns for 12 NM Safe Navigation 366 IALA light characteristics This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles. CREE Ultra high intensity LED is used as light source ...
