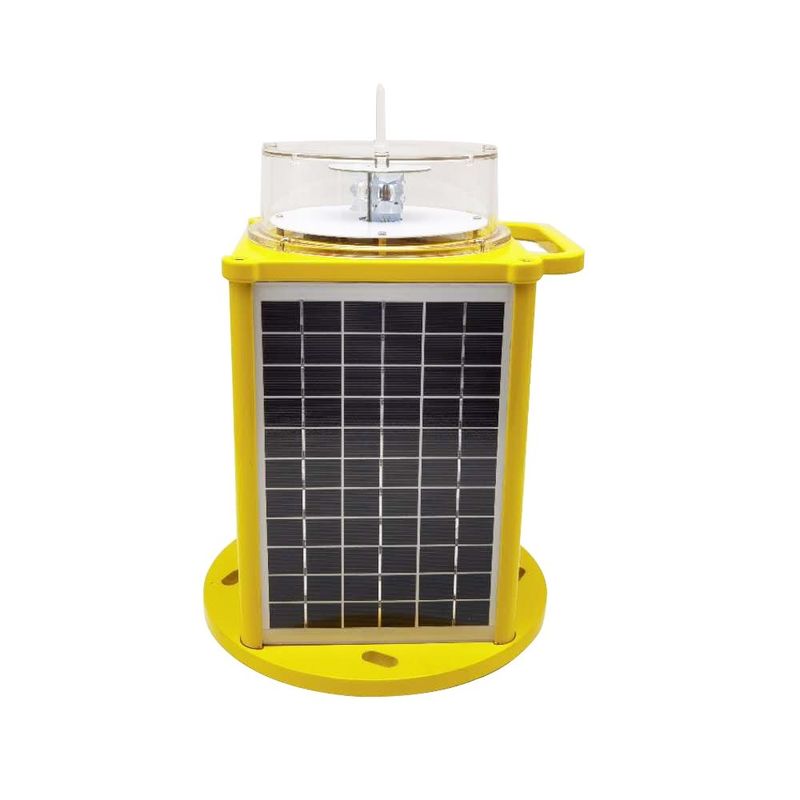

Quality GSM Monitoring Marine Signal Lantern 366 IALA Self Contained 8NM factory
>

GSM Monitoring Marine Signal Lantern 366 IALA Self Contained 8NM

Brand Name: Annhung
Model Number: AH-ML/S7
Place of Origin: China
Certification: CE, RoHS,ICAO
Minimum Order Quantity: 1

Product Details


Name: LED Solar Powered Marine Lanterns Visible Range(NM): 3-8m (AT@0.74)
Output(watts): 24 Vertical Divergence(degrees): ≥10°
Operating Voltage: 12Vdc Or 7.4Vdc Mounting(mm): 200×200×Φ12
Available Colors: Red, Green, Yellow, White, Blue, LED Life Experience(hours): >100,000
Highlight

GSM Monitoring Marine Signal Lantern

,

366 IALA Marine Signal Lantern

,

8NM Marine Lanterns Lights

Product Description

Self Contained Marine Lantern GPS Sync flashing Dusk-to-dawn Automatically

There is no need to open the light, the light flashing characteristics(IALA 256 flashes) could be remote controlled by IR Programmer easily.
Compliance
IALA E-200-1
CE
Features
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
Bird deterrent spike
Powder coated die casting aluminum base
ON/OFF button interface
System design
Solar panel as photocell for day/night operation(dusk to dawn)
The flashing rate(Fixed mode included) is adjust by IR programmer. If the ender user will use the fixed mode as the final working mode, please inform us before order.
Optional
GPS Sync flashing
External battery charger
GSM Monitoring
RS232/485 port
Application
AH-ML-S7 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
DescriptionParameter
Light Source
LED
Available Colors
Red, Green, Yellow, White, Blue
Visible Range(NM)
3-8m (AT@0.74)
Flash Characteristics
Adjustable 366 IALA light characteristics
LED Life Experience(hours)
>100,000
Solar Module Type
Mono crystalline Silicon
Charging Regulation
Microprocessor controlled
Battery type
Lithium ion Battery(VRLA is optional)
Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Mounting(mm)
200×200×Φ12
Dimension(mm)
250×250×370
Wind Speed
80m/s
Waterproof
IP68

Company Information

Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).



Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf

Product Highlights

Self Contained Marine Lantern GPS Sync flashing Dusk-to-dawn Automatically There is no need to open the light, the light flashing characteristics(IALA 256 flashes) could be remote controlled by IR Programmer easily. Compliance IALA E-200-1CE Features Electrical Based on LED technology, and its color ...
