Main Standby 80m/S Double Aviation Obstruction Light 20FPM GPS
Product Details
| Product Name: | Low-intensity L810 Double Aviation Obstruction Light | Light Source: | LED |
|---|---|---|---|
| Emitting Color: | Red | Intensity(cd): | ＞32cd |
| Horizontal Output(degrees): | 360 | Flash Characteristics: | 20FPM(steady/other Flashing Rate Is Customized) |
| Operation Mode: | Main-standby, Dusk-to-Dawn Operation | LED Life Experience(hours): | >100,000 |
| Battery Type: | Lithium Ion Battery | Ambient Temperature(℃): | -35~70 |
| Humidity: | 0~100% | Wind Speed: | 80m/s |
| Highlight |
Main Standby Double Aviation Obstruction Light,80m/s Double Aviation Obstruction Light,20FPM GPS Aircraft Warning Light |
||
Product Description

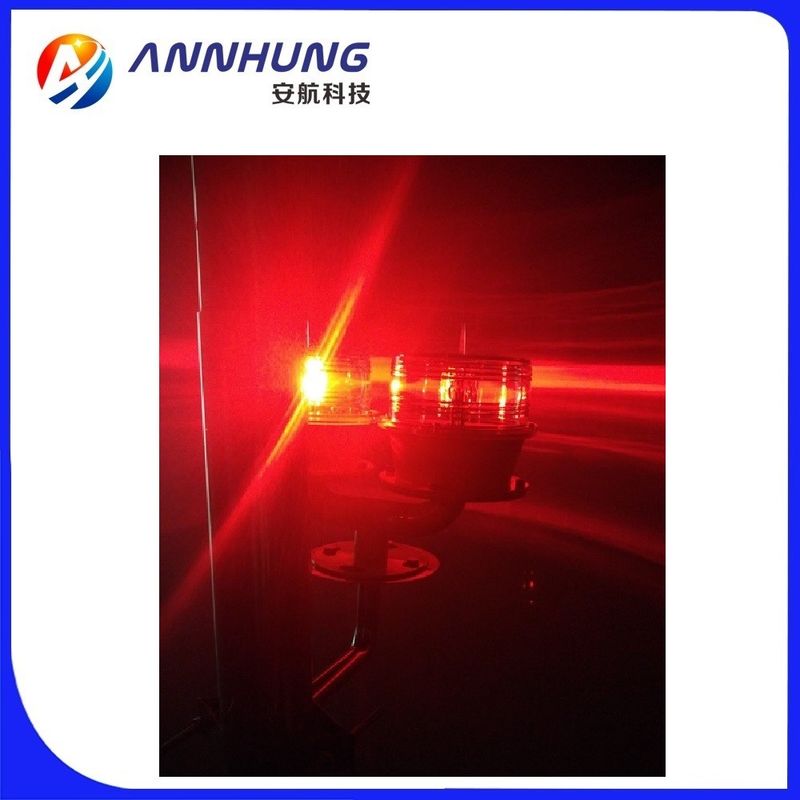

Low Intensity Solar Powered Double Aviation Obstruction Light / Aircraft Warning Light GPS Sync Flashing
Application
AH-LS-LD low-intensity aviation double warning lights is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter. Best protect your building.
Complaince
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
FAA L-810
Electrical
LED as light source, life experience >100,000hours, meet your project's requirements.
Physical
* With bird needle to prevent bird drop.
* UV & vibrations protected polycarbonate lens for converging light.
* Powder coated die casting aluminum base, light fastness, resist snow and rain.
* Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
System design
Built-in photocell (Photo diode) for day & night working mode
ON/OFF button make local control easy
Main-standby mode.
Optional
► External battery charger
►NVG - compatible infrared (IR) LED
| Light Source | LED |
| Available Colors | Red |
| Intensity(cd) | 32cd |
| Operation Mode | Main-standby, Dusk-to-Dawn operation |
| Flash Characteristics | Steady/Flashing(20fpm) adjustable |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Powder coated die-casting aluminum |
| Solar Module Type | Mono crystalline Silicon |
|
Overall Size (mm)
|
330×162×240
|
|
Installation Size
|
3/4inch thread hole
|
| Weight(kg) | 2.5 |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP67 |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition July 2013, table 6.3 Low-intensity Type A/B/E Obstacle Light |
Product datasheet download: download AH-LS-LD LED Low-intensity L810 Double Av...
Company Information
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
