Polycarbonate 60fpm LED Aviation Obstruction Light Medium Intensity Aluminum
Product Details
| Product Name: | Medium-intensity Type A L865 Aviation Obstruction Light | Light Source: | CREE High Intensity LED |
|---|---|---|---|
| Available Colors: | White(Other Color Is Optional) | Horizontal Output(degrees): | 360 |
| Flash Characteristics: | 20-60 Flashes Per Minute(factory Setting: 20fpm) | LED Life Experience(hours): | >100,000 |
| Body Material: | UV Protected Polycarbonate | Base Material: | Powder-coated Die-casting Aluminum |
| Ambient Temperature(℃): | -40~55 | Storage Temperature(℃): | -55~70 |
| Humidity: | 10%-95%RH(No Condensation) | Wind Speed: | 240Km/h |
| Highlight |
Polycarbonate LED Aviation Obstruction Light,60fpm LED Aviation Obstruction Light,Aluminum Solar Aviation Obstruction Light |
||
Product Description
Factory Supply Good Quality Medium-intensity Type A LED Aviation Obstruction Light
Application
-
AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is between 105-150 meters, and most time work with low intensity lights & medium intensity type B light installed on the lower place.
Compliance
-
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light
-
FAA L-865
Features
Electrical
-
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
-
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
-
Physical
- Unique design and UV protected polycarbonate reflector for converging light
-
UV protection Powder coated bright yellow color base make better visibility
-
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
-
Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high
System design
-
Built-in photocell for day/night operation(dusk to dawn operation)
-
Surge and lightning protection
Optional
-
Dry contact Alarm output for remote monitoring
-
GPS synchronization
-
Infrared LED for pilot using NVG
| SPECIFICATIONS | AH-MI-A2 LED Medium-intensity Type A L865 Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE high intensity LED |
| Available Colors | White |
| Intensity(cd) | ≥20000cd (Daytime) |
| ≥2000cd(Night) | |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Flash Characteristics | 20-60 flashes per minute(factory setting: 20fpm) |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12V, 24V, 36V, 48V) or AC(110-240VAC) |
| Power(W) | ≤20W(20fpm) |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |

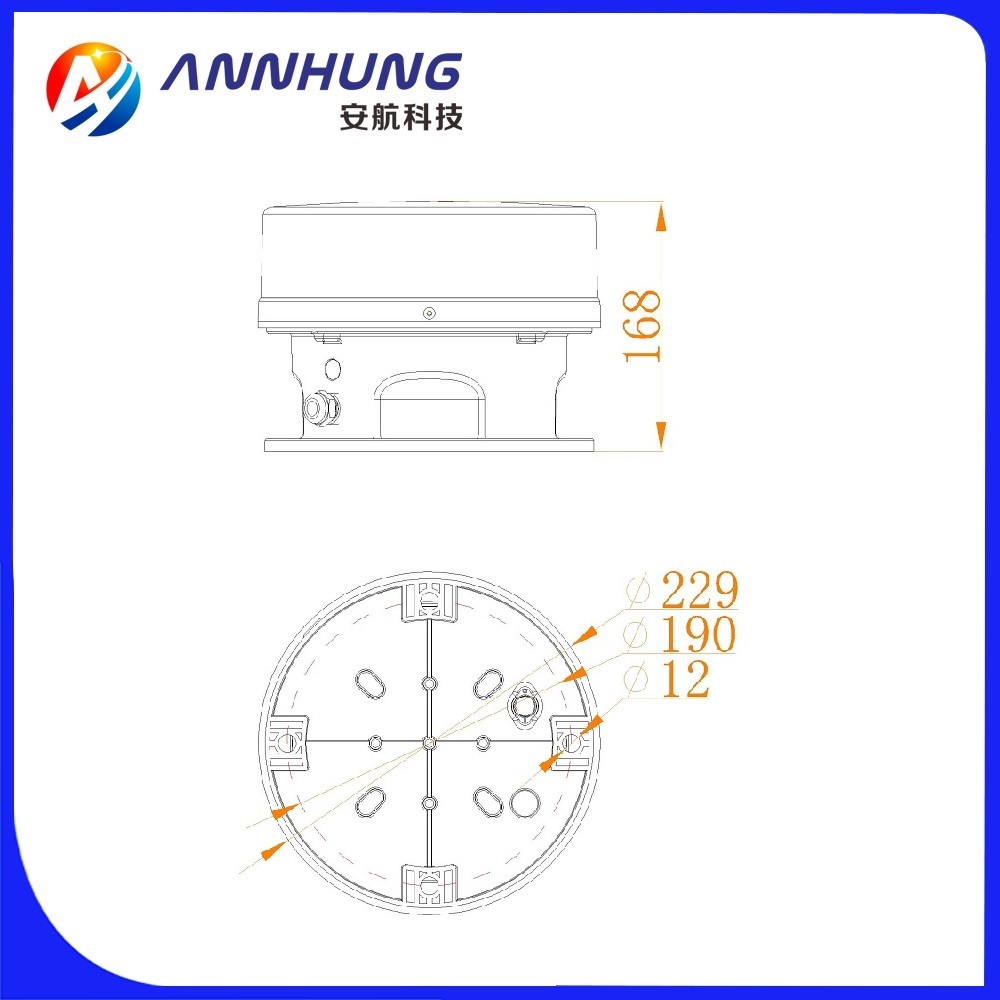

| Mounting | 190×190×θ12 |
| Dimension(mm) | 229×229×168 |
| Weight(kg) |
3
|
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
| Humidity |
10%-95%RH(No condensation)
|
| Wind Speed |
240Km/h
|
| Waterproof | IP66 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Seventh edition 2016, table 6.3 | |
| Medium-intensity Type A White Obstacle Light | |
| FAA | L-865 |
| Options Available | |
| GPS sync flashing | |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| Dry contact alarm output | |
| RS485 communication | |
| Bird deterrent spike |
Product datasheet download: download AH-MI-A2 LED Medium-intensity Type A L865...
