CAP 437 LED Solar Runway Light TLOF Threshold End Led Heliport Lights
Product Details
| Product Name: | Solar Powered Runway Threshold End Light | Light Source: | LED |
|---|---|---|---|
| Available Colors: | Red/Green, Red, Green | Flash Characteristics: | Steady |
| Operation Mode: | Wireless Remote Controlled | LED Life Experience(hours): | >100,000 |
| Circuit Protection: | Integrated | Battery Type: | Lithium Ion Battery |
| Lamb Body Material: | Aluminum Alloy, PC | Base Material: | Powder-coated Die-casting Aluminum |
| Ambient Temperature(℃): | -55~70 | Humidity: | 0~100% |
| Wind Speed: | 80m/s | Waterproof: | IP67 |
| Highlight |
CAP 437 LED Solar Runway Light,LED Solar Runway Light TLOF,Led Heliport Lights |
||
Product Description

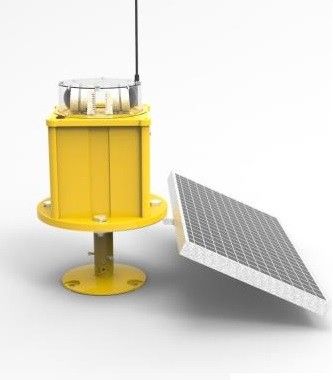

LED Solar Powered Runway Threshold End Light Red Green Solar Airport Lighting Heliport Lights
AH-SA-S2 LED Solar Powered Runway Threshold End Light use bidirectional optics; designed for permanent usage at Non-Precision Runways located in regions without access to electricity and high photovoltaic potential.
Solar power system is equipped for operating 365 days on solar energy.
Compliance
ICAO Annex 14 Vol. I (7th. Edition, July 2016)
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP67).
PC housing, UV resistance, shockproof and corrosion proof.
Powder coated die casting aluminum base
System design
ON/OFF button interface
Wireless remote control by AH-HP-RC
Optional
External battery charger
NVG - compatible infrared (IR) LED
Pilot to ground remote control(VHF radio control)
Application
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting, Runway end light
Helipad taxiway
Emergency operations
Airport/Airdrome
| SPECIFICATIONS | AH-SA-S2 LED Solar Powered Runway Threshold End Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red/Green, Red, Green |
| Intensity(cd)-Red | 50(L1), 120(L2), 260(L3), 1200(L4), 2870(L5) |
| Intensity(cd)-Green | 80(L1), 310(L2), 590(L3), 3000(L4), 12500(L5) |
| Flash Characteristics | Steady |
| Operation Mode | Wireless remote controlled |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 11.1V |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 11.1 |
| Battery Service Life | Average 5 years |
| Physical Characteristics | |
| Lamb Body Material | Aluminum Alloy |
| Base Material | Powder-coated Die-casting aluminum |
| Installation Size | 140×140×M10 |
| Overall Size (mm) | 560×500×514 |
| Weight(kg) | 10 |
| Product Life Expectancy | Average 10 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-55~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP67 |
| Compliance | |
| ICAO | ICAO, Annex 14th,Volume I, 7th Edition dated July 2016, clause 5.3.9.9 & Appendix 1, Figure A1-1b, 2016, clause 5.3.10.9/5.3.11.4 & Appendix 1, |
| Figure A1-1b | |
| Optional | |
| NVG - compatible infrared (IR) LED | |
| Pilot to ground remote control(VHF radio control) | |
|
External battery charger |
Product datasheet download: download AH-SA-S2 LED Solar Powered Runway Thresh...
