240vac Solar Runway Guard Light 50fpm ICAO Annex 14 Fragile Coupling
Product Details
| Product Name: | Solar Runway Guard Light | Light Source: | LED |
|---|---|---|---|
| Emitting Color: | Yellow, Red/Green (others Are Optional) | Angle(°): | ±30° |
| Working Mode: | Flashing 50fpm | Operation Mode: | 24hours, Photocell Is Optional |
| LED Life Experience(hours): | >100,000 | Ambient Temperature(℃): | -25~70 |
| Humidity: | 10~900% | Wind Speed: | 80m/s |
| Waterproof: | IP66 | ||
| Highlight |
240vac Solar Runway Guard Light,Solar Runway Guard Light 50fpm,Fragile Coupling Airport Runway Lights |
||
Product Description

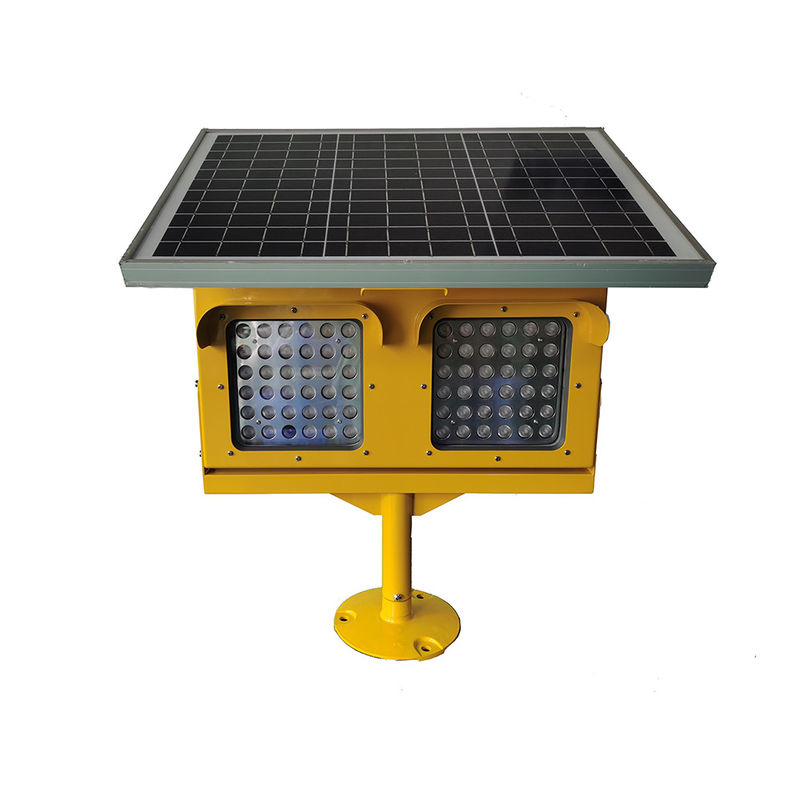

Wireless remote Solar Runway Guard Light Yellow Flashing ICAO Annex 14 Airport Light
Compliance of Runway Guard Light
ICAO Annex 14 Volume I
FAA AC 150/5345
Features of Runway Guard Light
Electrical
Significant reduction of maintenance costs and re-lamping expenses through long-lasting LED technology- more than 100,000 hours under actual operating conditions
Very less power could meet the standard intensity request
Physical
Fragile coupling avoid secondary damage
Permanent installation for commercial, defense and remote airfields
Temporary operation during construction, rerouting of taxiways or humanitarian aid
Rugged, self-contained solar engine with replaceable batteries.
Optional
Wireless remote operation capabilities
Extra battery charger from 110-240vac
Application of Runway Guard Light
Airport,
Helipad taxiway
Emergency operations
Airport/Airdrome
| SPECIFICATIONS | AH-HP-RG-S Solar Runway Guard Light |
| Light Characteristics | |
| Light Source | LED |
| Emitting Color | Yellow, Red/Green (others are optional) |
| Angle(°) | ±30° |
| Working mode | Flashing 50fpm |
| Operation Mode | 24hours, photocell is optional |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12V |
| Power(W) | 22 |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon,12V/40W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 12V/20AH |
| Battery Service Life | Average 5 years |
| Autonomy | 14 days (without charging) |
| Physical Characteristics | |
| Light Body Material | Aluminum alloy |
| Light Overall size(mm) | 500×347×618 |
| Installation size(mm) | Θ140×θ12 |
| Weight(kg) | 12.55 |
| Product Life Expectancy |
≥10 years
|
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-25~70 |
| Humidity | 10~900% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Optional | |
| Wireless Remote Control | |
| Extral battery charger from 110-240vac | |
Product datasheet download: download AH-HP-RG-S Solar Runway Guard Light.pdf
