Steady Burning 80m/S Helipad Landing Lights 240VAC Polycarbonate Lens
Product Details
| Product Name: | LED Precision Approach Path Indicator | Light Source: | LED |
|---|---|---|---|
| Available Colors: | Red/White | Azimuthr Range(degree): | 8° |
| Working Mode: | Steady Burning | Operation Mode: | 24hours Operation |
| LED Life Experience(hours): | >100,000 | Ambient Temperature(℃): | -35~80 |
| Humidity: | 10~90% | Wind Speed: | 80m/s |
| Highlight |
Steady Burning Helipad Landing Lights,80m/s Helipad Landing Lights,Polycarbonate Lens LED Heliport Light |
||
Product Description

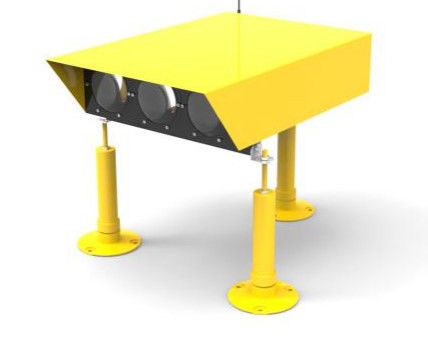

LED Precision Approach Path Indicator Heliport PAPI light helipad landing lights indicators
The LED Precision Approach Path Indicator (PAPI) is used to guide aircraft to approach the runway at an appropriate altitude. It is specially designed to accommodate the helicopter's steep angles of descent and deliberate speeds.
There are two Colors which to show two wide horizontal beams in different colored light. And it is projected in fan shaped array into the incoming flight pattern.
Solar power system is optional for PAPI.
PAPI Visual Indication:
ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1Compliance
FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110, 240VAC), DC48V or others
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Housing material is stainless steel which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling reduce the secondary damage to helicopters effectively
Optional
Clinometer
VHF pilot to ground remote control
Solar power system
Application
Permanent, Temporary, Emergency Helipad/Airport/Helideck
OFFSHORE/ ONSHORE USAGE
| SPECIFICATIONS | AH-HP-PAPI LED Precision Approach Path Indicator |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red/White |
| Azimuthr range(degree) | 8° |
| Working mode | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | AC220V |
| Power(W) | 70W*3 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Stainless steel |
| Leg material | Die casting aluminum |
| Mounting | 140x M10 |
| Dimension(mm) | 557x740x464 |
| Weight(kg) | 18 |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-35~80 |
| Humidity | 10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO |
ICAO, Annex 14th, Volume I, 6th Edition dated 2013,AO Annex 14 Volume II –Figure 5-11
|
|
2013, clauses 5.3.5.28 – 5.3.5.40, Figure A2-23
|
|
|
Appendix 1, 2.1.1
|
|
| Options Available | |
| Solar Power system | |
| VHF Pilot to Ground Remote Control | |
| Wireless Remote Control |
Product datasheet download: download AH-HP-PAPI LED Precision Approach Path In...
