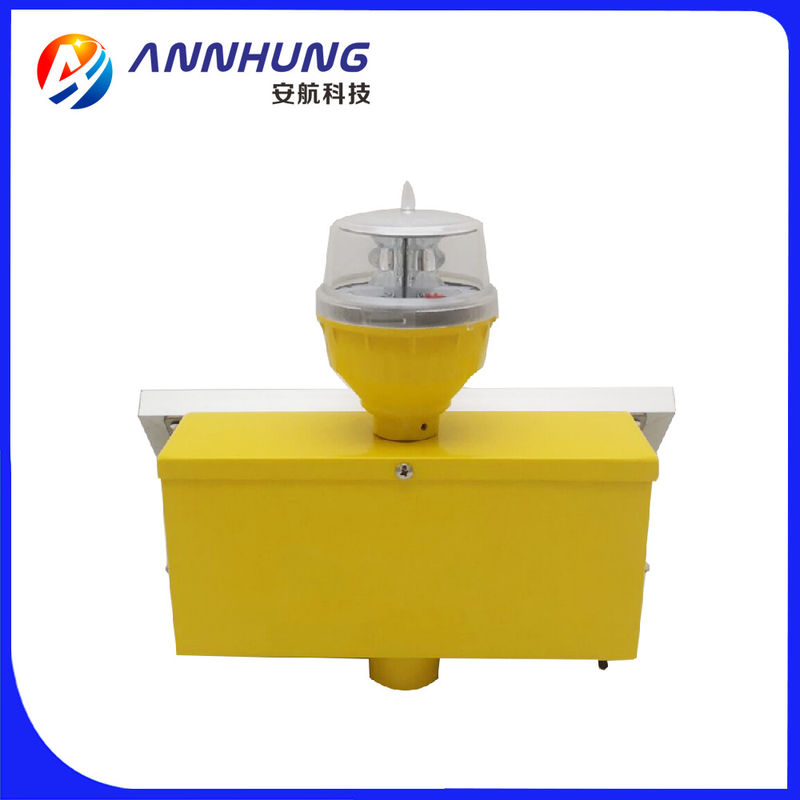

32.5cd Solar Aviation Obstruction Light 80m/s Low Intensity
Product Details
| Product Name: | Solar Aviation Obstruction Light | Light Source: | 3 High Intensity CREE LED |
|---|---|---|---|
| Emitting Color: | Red | Horizontal Output(degrees): | 360 |
| Flash Characteristics: | Steady/Flashing(20fpm) Adjustable | Operation Mode: | Dusk-to-Dawn Operation |
| Ambient Temperature(℃): | -55~70 | Humidity: | 0~90% |
| Highlight |
SUS304 Solar Aviation Obstruction Light,32.5cd Solar Aviation Obstruction Light,80m/s Low Intensity Obstruction Light |
||
Product Description
Low-intensity Solar Powered Aviation Obstruction Light System
Aviation Obstruction Light
Solar Aviation Obstruction Light
Solar Powered Aviation Obstruction Light
Low-intensity Aviation Obstruction Light
Application
l AH-LS-A1 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
l Used alone on the top of obstacle which height is less than 45meter
Main parameter
| SPECIFICATIONS | AH-LS-A1 Low-intensity L810 Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Emitting Color | Red |
| Intensity(cd) | ≥32.5cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady/Flashing(20fpm) adjustable |
| Operation Mode | Dusk-to-Dawn operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 12 |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3 years |
| Battery Capacity(AH) | 9 |
| Autonomy (hours) | Steady: 90, Flashing: 180 |
| Physical Characteristics | |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Stainless steel 304 |
| Installation Size | 3/4inch thread hole(standard) |
| Overall Size (mm) | 268×243×300 |
| Weight(kg) | 3 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-55~70 |
| Humidity | 0~90% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 | |
| Low-intensity Type A/B Obstacle Light | |
| FAA | L-810 |
| Optional | |
|
NVG - compatible infrared (IR) LED
|
