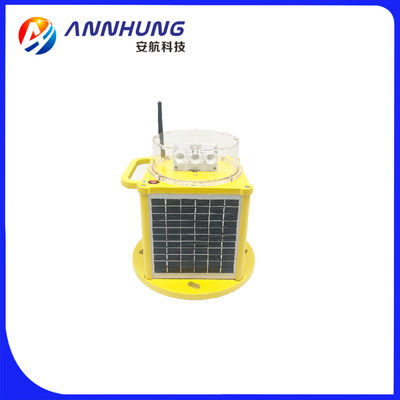

240VAC ICAO Solar Runway Threshold Light FATO TLOF For Airport
Product Details
| Application: | Airport, Touchdown And Lift- Off Area ( TLOF) , Final Approach And Take- Off Area ( FATO) , Taxiway Lighting, Runway Edge Lighting, Portable Or Expedited Airfield Lighting, Threshold Lighting, Runway End Light | Standard: | ICAO Annex 14 |
|---|---|---|---|
| Material: | Mono Crystalline Silicon Solar Panel, Powder-coated Die-casting Aluminum | Emitting Color: | White, Blue,Red/Green, Yellow/White, Green, Red, White/White |
| Flash Characteristics: | Steady(Flashing Mode Is Optional) | LED Life Experience(hours): | >100,000 |
| Product Name: | Solar Runway Light, White Solar Airport Lighting, Solar Runway Threshold/End Light, Red Green | ||
| Highlight |
240VAC Solar Runway Threshold Light,ICAO Solar Runway Threshold Light,FATO Airport Runway Lights |
||
Product Description
Solar Runway Light, White Solar airport Lighting, Solar Runway Threshold/End Light, Red Green
Compliance of solar runway light
ICAO Annex 14 Vol. I (7th. Edition, July 2016)
ICAO Annex 14 Volume ǁ Heliports 5.3
Features of solar runway light
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing, UV resistance, shockproof and corrosion proof.
Powder coated die casting aluminum base
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
ON/OFF button interface
Remote Controlled By wireless remote controller
Optional
External battery charger(110-240VAC)
NVG - compatible infrared (IR) LED
GPS sync flashing
Application of solar runway light
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting, Runway end light
Helipad taxiway
Emergency operations

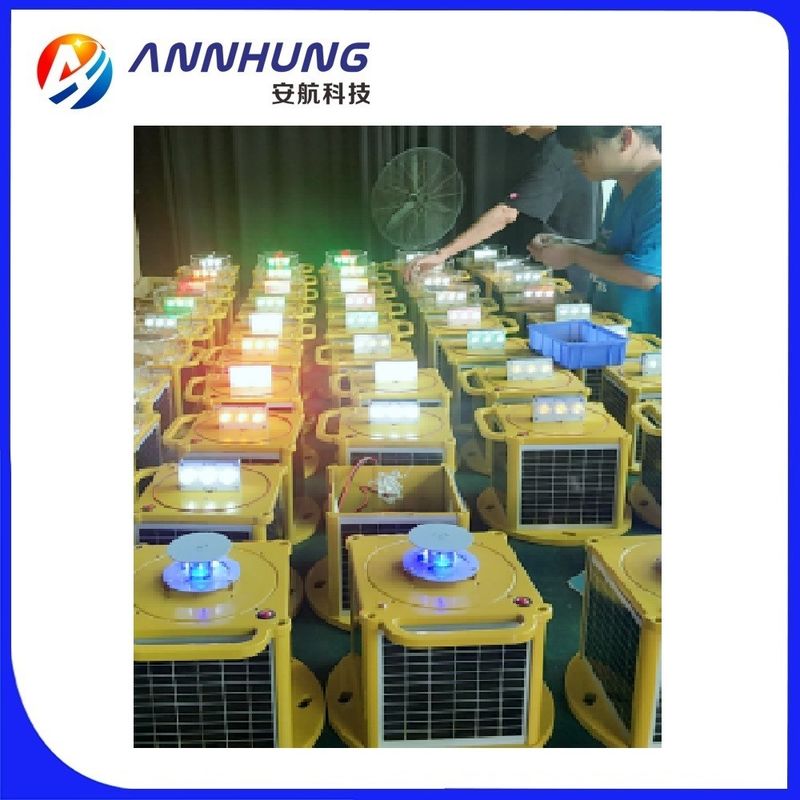

AH-SA-A Serial Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary airdrome. It could be used as Runway Edge Light, Taxiway Light, Threshold/End Light, Heliport Beacon, Low intensity Aviation Obstruction Light, Heliport Light, FATO, TLOF, Flight Path Alignment Guidance Light, Aiming Point Light, Flood Light, etc. Solar power system is equipped for operating 365 days on solar energy.
Fragile coupling need to be paid separately if needed.
Solar Taxiway Edge Light (Blue)
Solar Helipor Light (Red), FATO (White);
TLOF (Green);
Flight Path Alignment Guidance Light (White)
Aiming Point Light(White)
Solar Runway Edge Light (White/White,White/Yellow),
Solar Runway Threshold/End Light (Red/Green)
Solar Approach center-line light Light(White)
Solar Approach crossbar light (White), Safety Channel End light (Red), Flood Light(White)
| (SPECIFICATIONS | AH-SA-A Serial Solar Airfield Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | White, Blue,Red/Green, Yellow/White, Green, Red, White/White |
| Flash Characteristics | Steady(Flashing mode is optional) |
| Operation Mode | Controlled by AH-HP-RC contoller |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12V |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 3*4=12W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 11.1 |
| Battery Service Life | Average 5 years |
| Physical Characteristics | |
| Lamb Body Material | Aluminum Alloy |
| Base Material | Powder-coated Die-casting aluminum |
| Installation Size | 200×200×M10 |
| Overall Size (mm) | 250×250×250 |
| Weight(kg) | 5 |
| Product Life Expectancy | Average 10 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-55~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO |
Annex 14
|
| Optional | |
|
External battery charger
|
|
|
NVG - compatible infrared (IR) LED
|
|
| Pilot to ground remote control(VHF radio control) |
Download datasheet of solar runway light: download AH-SA-A Serial Solar Airfied Light.pdf
