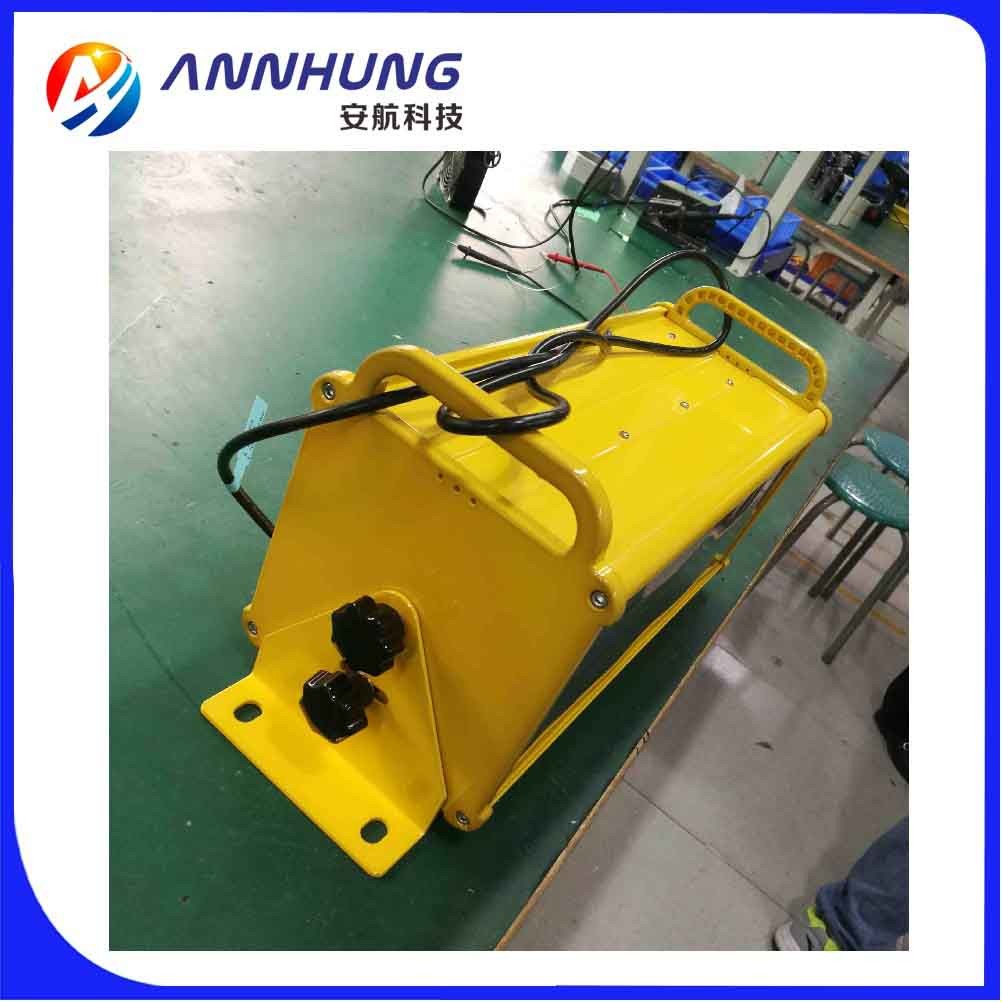

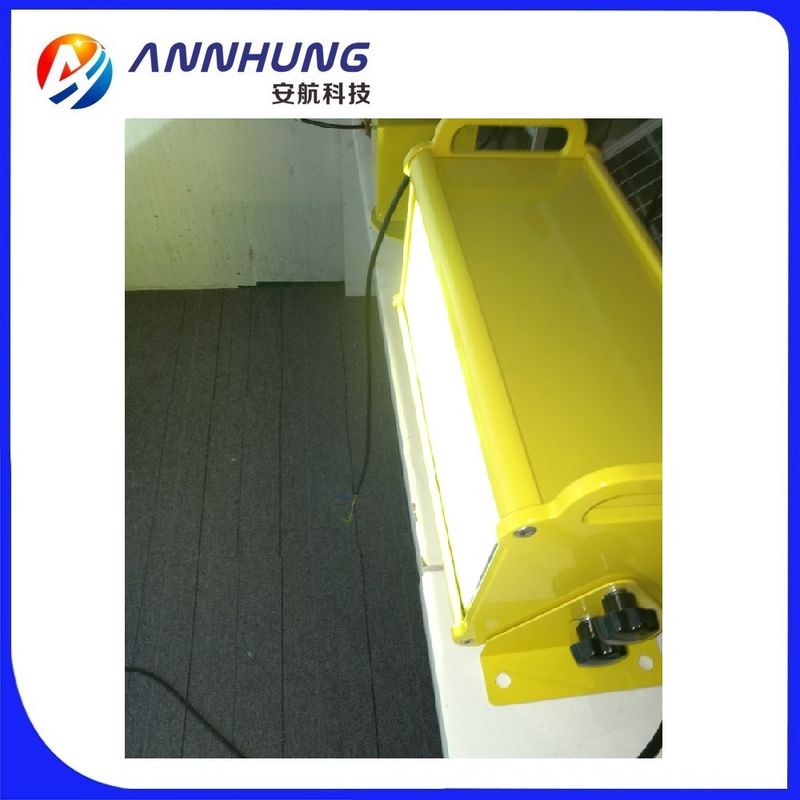

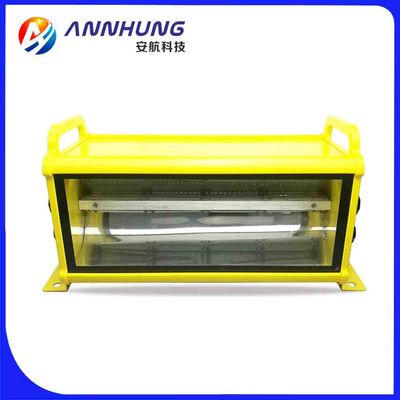

40W High Intensity LED Aviation Obstruction Light NVG For 150m Building

Minimum Order Quantity : 1 Price : 1270-2000usd/pc
Packaging Details : 1pc in 1Carton Delivery Time : 7-10 days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1000 pieces per month
Place of Origin: China Brand Name: ANNHUNG
Certification: CE, RoHS, ICAO, ISO9001 Model Number: AH-HI-A0

Detail Information

Name: High-intensity Type A Aviation Obstruction Light For Exceeding 150 Meters Building Using Light Source: CREE High Intensity LED
Available Colors: White Flash Characteristics: 40-60 Flashes Per Minute
Operation Mode: 24hours Operation, 3 Different Modes Horizontal Output(degrees): 120
Vertical Divergence(degrees): 3-7 LED Life Experience(hours): >100,000
Operating Voltage: DC(48VDC) Or AC(110, 240V) Average Power(W): 40W
Base Material: Powder Coated Die-casting Aluminum Wind Speed: 80m/s
High Light:

High Intensity LED Aviation Obstruction Light

,

40W LED Aviation Obstruction Light

,

NVG Solar Aviation Obstruction Light

Product Description

High-intensity Type A Aviation Obstruction Light for Exceeding 150 Meters Building Using

High-intensity Type A Aviation Obstruction Light

High-intensity Aviation Obstruction Light

Type A Aviation Obstruction Light

Aviation Obstruction Light





This High-intensity Type A Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance. Self-designed reflection board ensure less LED could emitting brighter light.


Application
AH-HI-A0 High-intensity aviation obstrution light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM,Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.


Compliance
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light
** FAA L-856


Electrical
* CREE ultra high intensity LED as light source saving power
* Power supply available in DC(48V) or AC(110V, 240V)
* Unique design and UV protected polycarbonate lens for converging light and saving LED power
* UV protection Powder coated bright yellow color base make better visibility
* Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
* Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light
System design
 Built-in photocell for day/twilight/night operation
 Surge and lightning protection
Optional
Alarm contact for remote monitoring
Infrared LED for pilot using NVG
GSM cellphone monitoring
RS485 communication part for monitoring
User adjustable flashing rate(40, 50, 60 flashes/minute)
GPS synchronization



  More detailed parameter:

Body Material Polycarbonate
Base Material Powder coated die-casting aluminum
Mounting θ190×θ12
Weight(kg) 6
Product Life Expectancy 5 years Plus
Humidity 0%-100%
Wind Speed 80m/s
Waterproof IP67
ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition 2016, table 6.3 High-intensity Type A White Obstacle Light
FAA L-856
  NVG(Night Vision Goggles) compatible LED
Options Available GPS Sync Flashing, Dry Contact alarm(NO COM NC)
  User adjustable flashing rate (40, 50, 60)
