Product Description

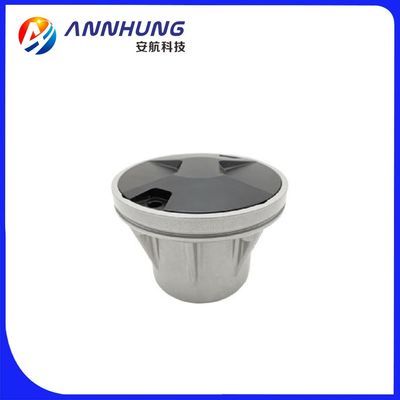

Heliport Inset Bidirectional Light runway center line light Helipad Landing Lights Green Green two way light
Heliport Inset bidirectional light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
It could be used as Center Line Light, Runway Threshold/End Light, Runway Edge Lighting etc. The emitting color is green/green or yellow/red or yellow/green or red/green.
Compliance
l ICAO Annex 14 Volume ǁ Heliports 5.3.
l FAA AC 150/5390-2B Heliport Design Guide
| SPECIFICATIONS |
AH-HP-C Heliport Inset Bidirectional Light |
| Light Characteristics |
|
| Light Source |
CREE Ultra high intensity LED |
| Available Colors |
Green/Green, White/Yellow, Green/Red or others |
| Flash Characteristics |
Steady burning |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) |
>100,000 |
| Electrical Characteristics |
|
| Operating Voltage |
110-240VAC, 48VDC, 24VDC or others |
| Power(W) |
7 |
| Physical Characteristics |
|
| Body Material |
Anodized Die-casting aluminum |
| Base Material |
Painted aluminum |
| Overall size(mm) |
194×194×138 |
| Installation size(mm) |
199×199×146 |
| Weight(kg) |
4.5 |
| Product Life Expectancy |
Average 5 years
|
| Environmental Factors |
|
|
Ambient Temperature(℃)
|
-55~70 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof |
IP68 |
| Compliance |
|
| ICAO |
ICAO Annex 14 Volume ǁ Heliports 5.3 |
| Options Available |
|
| |
Infrared LED compatible for NVG (Night |
| |
Vision Goggles) |
| |
VHF pilot to ground remote control
|
Product datasheet download: download AH-HP-C Heliport Inset bidirectional Ligh...
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V
Physical
Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by black hard anodizing layer have good corrosion protection and load bearing
IP68 waterproof ensure light work fine underground
Emitting light in two opposite sides
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Marine treated
Application
Helipad/Heliport Runway
Heliport Taxiway
Anhang Technology Company Limited is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, UL94, etc.
All aviation obstruction light / aircraft warning lights / obstacle lights are / helipad lighting / solar airfield lights fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ).
All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities).
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
