Product Description
Portable Helipad Landing Lights Portable Airfiled Lighting System PALS Infrared LED Wireless Remote Control
AH-PA-EMC Portable Airfield Lighting System is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad, especially for medivac and other emergency situations.
Highly portable and easy to install the portable landing zone kit provides temporary illumination of any military or civilian helicopter landing surface or airfield.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC NO. 150/5354-50B
Portable Helipad Landing Lights Features
Electrical
Ultra High intensity LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
The LED light source guarantees high performance illumination hight-performance illuminateion. Compatible Night Vision Goggles (NVG) are optional for “covert” operations with infrared (IR) emission.
The light unites are available with aeronautical colors and infrared (IR) lights. The basic airfield / helicopter landing zone function include: perimeter (green), threshold (green), runway end (red), runway (white), approach (white) lights.
Physical

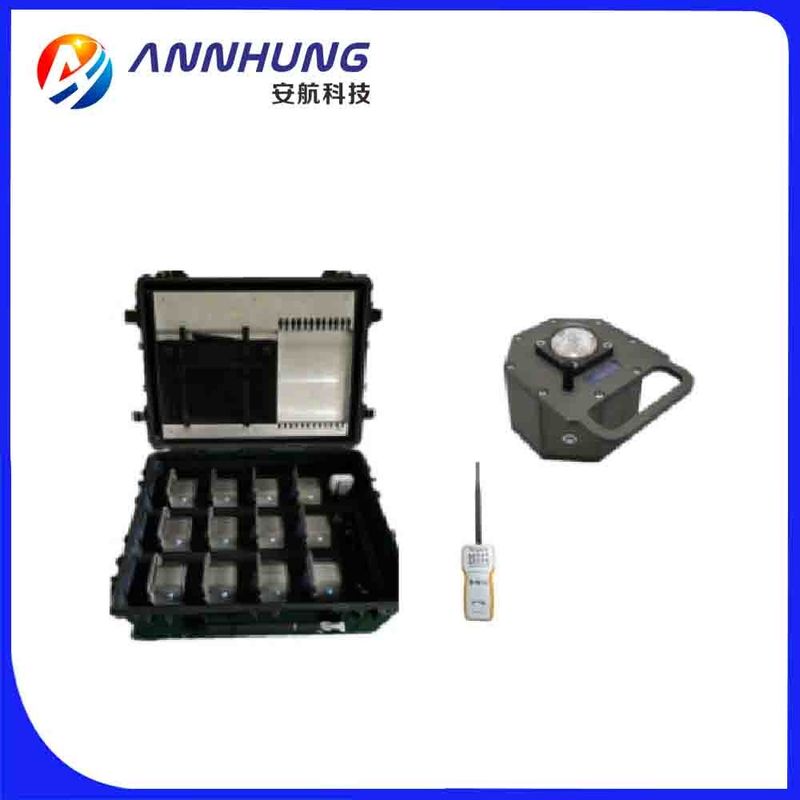

The system is self-contained in a easy to transport ruggedized suitcase(with wheels and handle) that includes a set of light units and other equipments to support the landing.
Portable lights are supplied by rechargeable batteries and an “drop in” charger in suitcase. The batteries are recharged by simply inserting the lights into their slot and connecting the external power to the suitcase.
System design
ON/OFF button located beside base
LCD screen on front panel for battery status
Optional
ground to ground” wireless remote controller allows to manage the
system from remote
Solar charging system
Portable Helipad Landing Lights Application
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting
Helipad taxiway
Emergency operations
| SPECIFICATIONS |
AH-PALS
Portable Airfield Lighting System
|
| Light Unit |
|
| Light Source |
ultra high intensity LED |
| Available Colors |
Red, Green, Yellow, White, Blue, IR |
| Flash Characteristics |
Steady(Flashing mode is optional) |
| Operation Mode |
24hours working after switched ON |
| LED Life Experience (hours) |
>100,000 |
| Overall Size (mm) |
170×132×112 |
| Weight (kg) |
2.4 |
| Rechargable Battery |
Lithium ion battery, 12V/16AH |
| Autonomy (hours) |
60hours
|
| Waterproof |
IP67 |
| Suitecase |
|
| Overall Size (mm) |
500*600*250 (8pcs lights in, 6pcs is optional) |
| Weight (kg) |
35kg(lights, solar panel, battery charger included) |
| Battery charging input |
110-240VAC |
| Wireless Remote Control |
|
| Frequency |
433MHZ |
| Size (mm) |
83*30*550 (antenna included) |
| Weight (kg) |
0.3 |
| Remote control |
ON/OFF, flashing rate, emergency mode |
| Power Supply |
3.7VDC for battery recharge by 90-230 VAC
90-230 VAC power plug
|
| |
Battery charger |
| Foldable Solar Panel |
|
|
Folded sizes (mm)
|
410*300*30 |
| Unfolded sizes (W*L) |
1440*410 |
| Weight (kg) |
3.1kg |
| Nominal system voltage |
18V |
| Nominal rated power |
120W |
| Anchoring Stakes |
|
| Size (mm) |
31mm |
| Material |
Stainless Steel |
| Weight (kg) |
0.06 |
Portable Helipad Landing Lights System design:
Helipad Landing Lights Datasheet download: download AH-PALS Portable Airfield Lighting System...
