| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | ICAO, CE, ISO 9001 |
| Model Number | AH-HP-E1 |

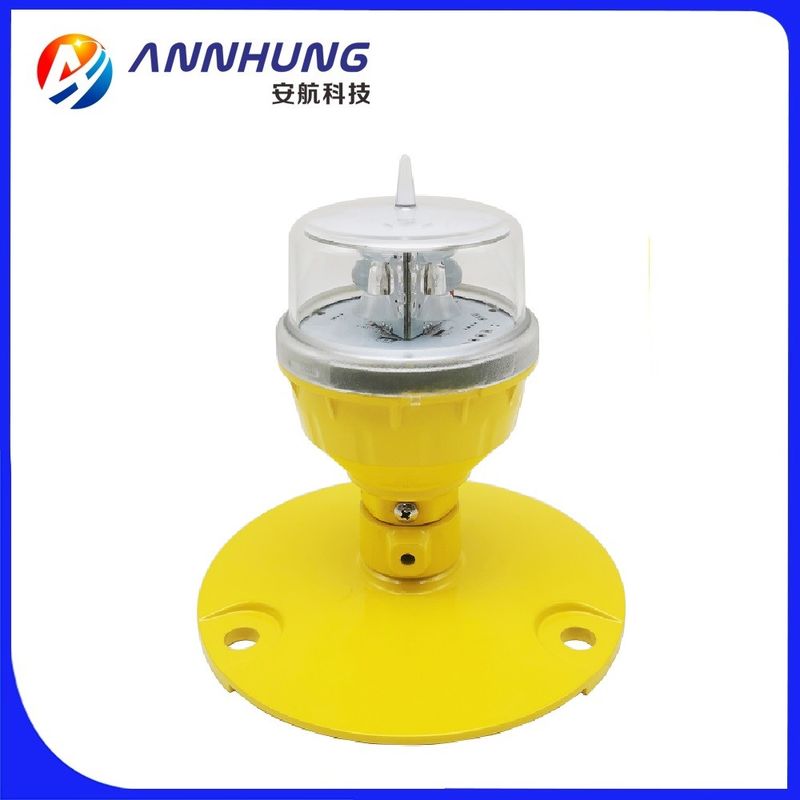

| SPECIFICATIONS | AH-HP-E1 LED Heliport Elevated Light |
| Light Characteristics | |
| Light Source | Ultra high intensity LED |
| Available Colors | Green, Yellow, White, Red, Blue, IR |
| Intensity(cd) | ≥50cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC48V and AC(110-240VAC), DC12V |
| Power(W) | 5 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |

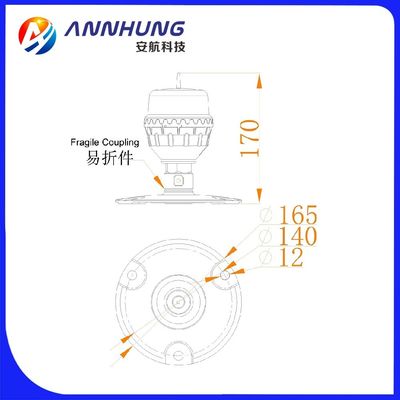

| Mounting | 140×140×12 |
| Dimension(mm) | 165×165×170 |
| Weight(kg) | 0.7 |
| Base | Frangible coupling |
| Product Life Expectancy |
Average 5 years
|
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-55~70 |
| Humidity | 10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| ICAO |
ICAO Annex 14 Volume ǁ Heliports 5.3
|
| FAA | FAA AC 150/5390-2B Heliport Design Guide |
| Options Available | |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| VHF Pilot to Ground Remote Control |
Heliport Elevated light should not exceed a height of 25cm. There is a fragile coupling in the base connection, so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional
LED power supply board includes short circuit and open circuit protection
Line surge protection by metal oxide varistor
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling base reduce the secondary damage to helicopters effectively
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Application
Helipad/Heliport TLOF edge areas
Heliport FATO edge
Helipad Runway edge
Helipad taxiway edge
Datasheet download: download AH-HP-E1 LED Heliport Elevated Light.pdf
