| Place of Origin | CHINA |
| Brand Name | ANNHUNG |
| Certification | IALA, CE, ROHS, IP68, ISO |
| Model Number | AH-ML-S7 |

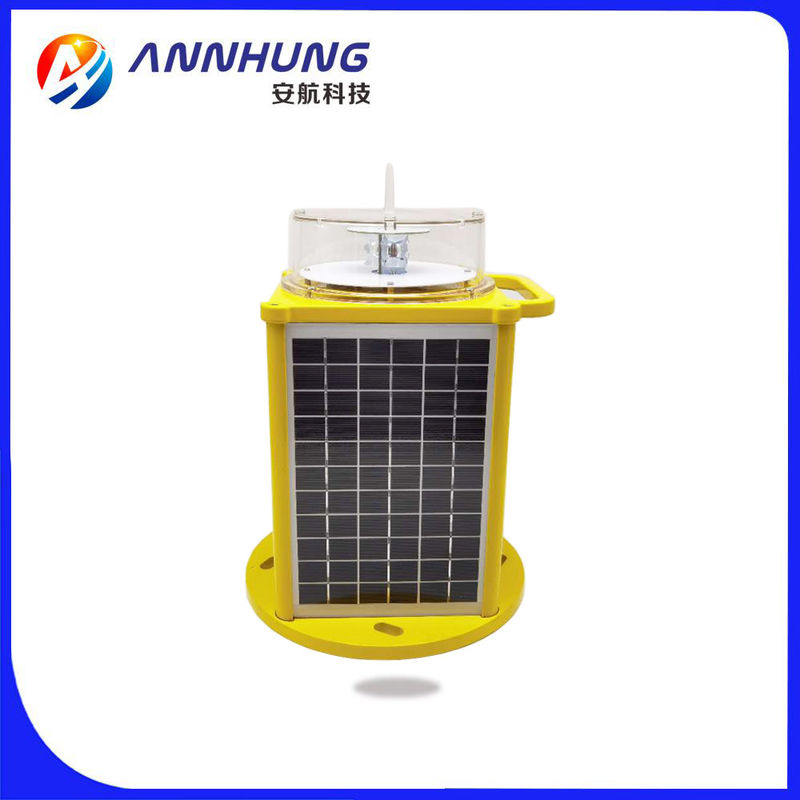

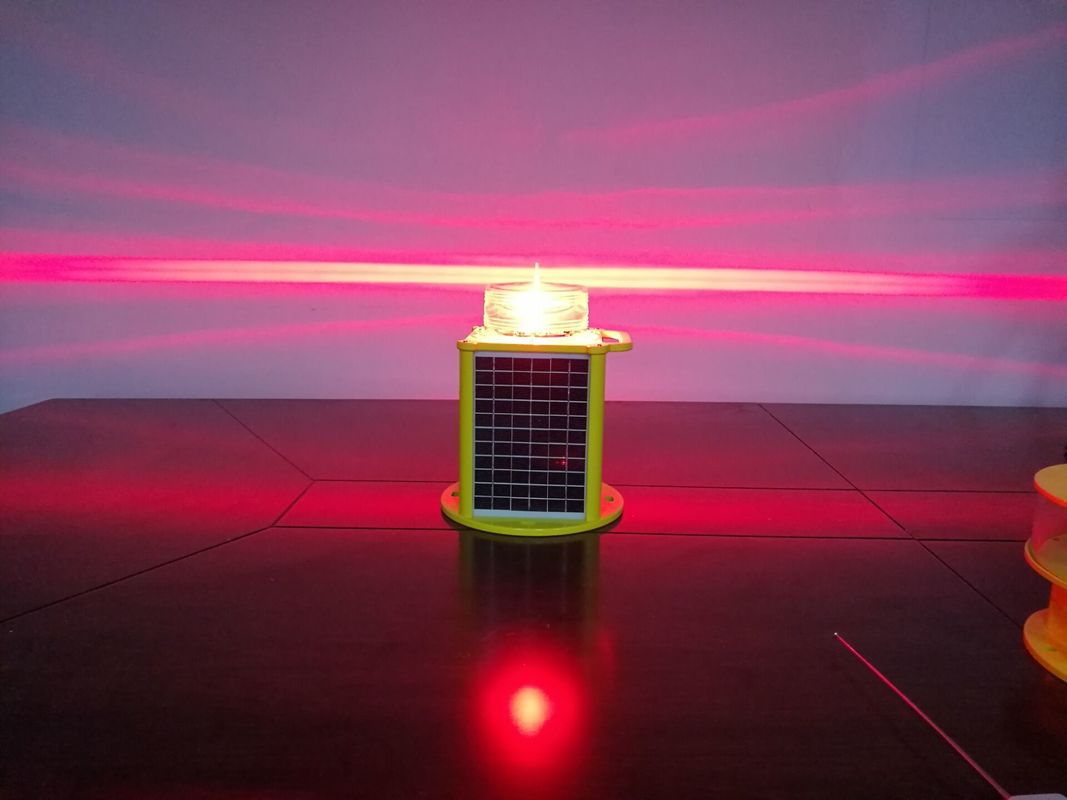

This LED Solar Marine Lanterns is completely self-contained lantern. Ultra high intensity LED is used as light source which make performance better.
There is no need to open the light, the light flashing characteristics(IALA 256 flashes) could be remote controlled by IR Programmer easily.
GSM Monitoring as optional function, when fault happens, it will send out text message automatically.
Compliance
IALA E-200-1
| SPECIFICATIONS | AH-ML-S7 LED Solar Marine Lanterns |
| Light Characteristics | |
| Light Source | high intensity LED |
| Available Colors | Red, Green, Yellow, White, Blue, Yellow & Blue |
| Visible Range(NM) | 3-7 Nautical miles (AT@0.74) |
| Horizontal Output(degrees) | 360degrees |
| Vertical Divergence (degrees) | 8degrees |
| Flash Characteristics | Adjustable 256 IALA light characteristics |
| Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
| LED Life Experience(hours) |
>100,000hours |
| Electrical Characteristics | |
| Operating Voltage | 11.1Vdc |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 24W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery (lead acid battery and other type are optional) |
| Battery Capacity (Ah) | Depends on different visible range |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3-5 years |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting(mm) |
200×200×Φ12 |
| Dimension(mm) |
250×250×370 |
| Weight(kg) | 7kg |
| Product Life Expectancy | ≥10 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Temperature(℃) | -20℃~80℃ |
| Compliance | |
| IALA | Signal colors compliant to IALA E-200-1 |
| Options Available | |
| GSM Monitoring | |
|
RS232/485 port |
|
| GPS Sync flashing | |
| Charging port |
Features
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
Polycarbonate base, UV resistance, shockproof and corrosion proof lens
Bird deterrent spike on top avoid the bird standing
Powder coated die casting aluminum base have good corrosion protection
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon solar panel
ON/OFF button interface ensure the light could be turned off for storage
System design
Solar panel as photocell for day/night operatio, the solar marine lantern turn on at night and turn off at daytime automatically
The flashing rate is adjust by IR programmer, the standard is 245 characters, 300+ is optional
Optional
External battery charger
GSM Monitoring
RS232/485 port
GPS Sync flashing
Application
AH-ML-S7 Solar Marine Lantern is used on buoy, light house, light tower nd any other off shore site for marine river ocean safe navigation.
Datasheet download: download AH-ML-S7 LED Solar Powered Marine Lantern...
