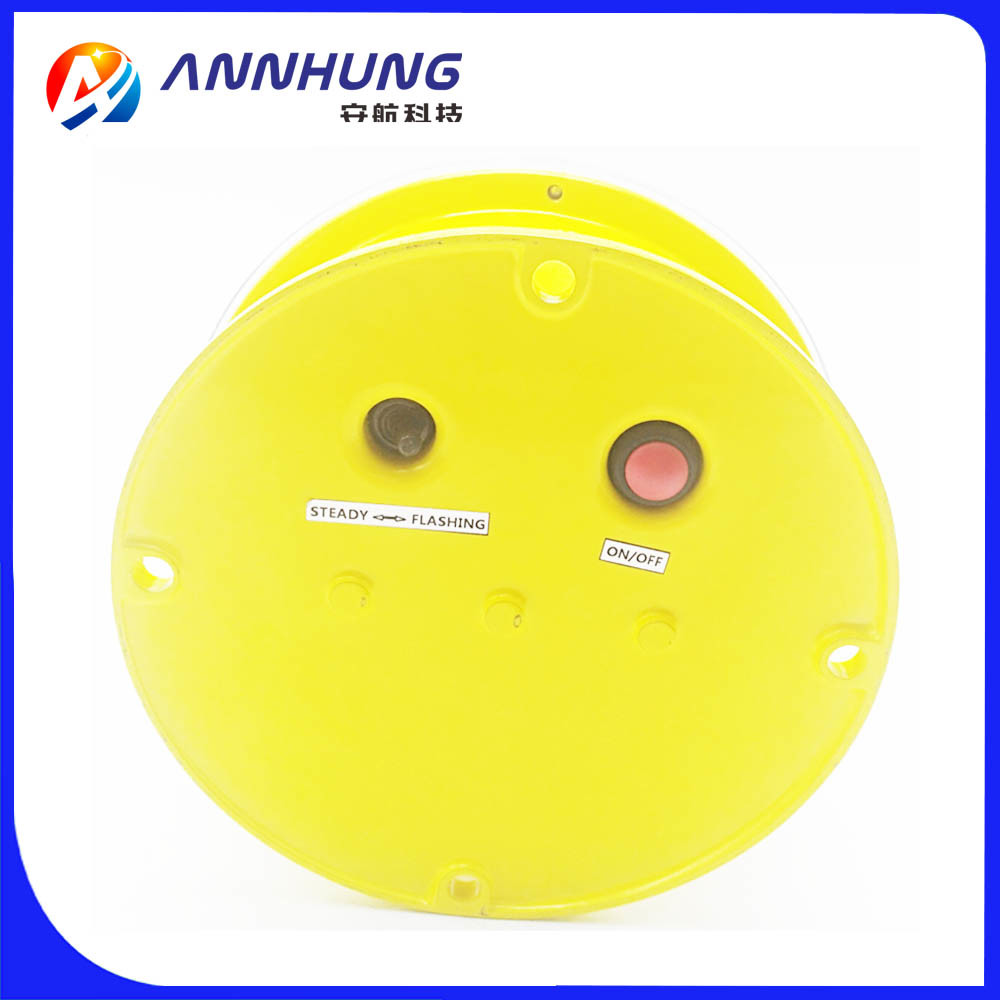

AH-LS-C 1-3nm LED Marine Lantern Solar Powered Marine Navigation Light Morse code U
This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.
It is full-sealed structure ensure(IP68) no water go inside. There is a ON/OFF button under base make local control easier.
Compliance
IALA E-200-1
| SPECIFICATIONS |
AH-LS-C LED Solar Powered Marine Lanterns |
| Light Characteristics |
|
| Light Source |
LED |
| Available Colors |
Red, Green, Yellow, White, Blue |
| Visible Range(NM) |
1-3 (AT@0.74) |
| Horizontal Output(degrees) |
360 |
| Vertical Divergence(degrees) |
7 |
| Flash Characteristics |
FL3S(0.2,2.8) (others are optional) |
| Operation Mode |
Dusk-to-dawn Automatically (Built-in photocell) |
| LED Life Experience(hours) |
>100,000 |
| Electrical Characteristics |
|
| Operating Voltage |
3.7Vdc |
| Circuit Protection |
Integrated |
| Solar Characteristics |
|
| Solar Module Type |
Mono-crystalline Silicon |
| Output(watts) |
1.8 |
| Charging Regulation |
Microprocessor controlled |
| Battery Characteristics |
|
| Battery type |
Lithium ion battery |
| Nominal Voltage (V) |
3.7 |
| Battery Service Life |
Average 3 years |
| Autonomy (hours) |
Steady: 60 Flashing: 150(duty cycle:12%) |
| Physical Characteristics |
|
| Body Material |
UV protected Polycarbonate |
| Base Material |
Powder-coated Die-casting aluminum |
| Mounting(mm) |
140×140-4×M6
|
| Dimension(mm) |
162×162×160 |
| Weight(kg) |
1 |
| Product Life Expectancy |
Average 5 years |
| Environmental Factors |
|
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof |
IP68 |
| Compliance |
|
| IALA |
Signal colors complying to IALA E-200-1 |
| Options Available |
|
| |
Charging port |
| |
Flashing rate |
| |
IR Program |
| |
GPS sync flashing |
Features
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
Built-in mono-crystalline silicon solar panel, conversion efficiency is better than poly-crystalline silicon
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Flashing rate: 20FPM(Other flashes is optional)
ON/OFF button interface located under base
Optional
External battery charger
Flashing rate optional
IR Program
GPS sync flashing
IALA 256 light characters adjustable
Application
AH-LS-C Solar Marine Lantern is used on buoy, light house and any other off shore site.
Datasheet download:download AH-LS-C LED Solar Powered Marine Lanterns...
