FAA L810 IP66 4W 32.5cd 60FPM Aircraft Warning Light
Product Details
| Name: | Low Intensity Aircraft Warning Light Red Flashing Light Used On Chimney Tower Building | Color: | Red And Infrared LED |
|---|---|---|---|
| Water Proof: | IP66 | Light Intensity: | ≥ 32.5cd |
| International Standard: | ICAO Annex 14, FAA L810 | Products Name: | Double Aviation Obstruction Light |
| Light Source: | LED ( Infrared LED Is Optional ) | Working Mode: | Steady/20/30/60FPM Is Adjustable |
| Highlight |
60FPM Aircraft Warning Light,32.5 Candela Aircraft Warning Light,4W Led Flashing Warning Lights |
||
Product Description
Low intensity Aircraft Warning Light red flashing light used on chimney tower building
Advantage:
1.PC material keep from strong impact, thermal stability, high transmittance.
2.Bird spike against bird standing.
3.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5.About 96% less power than 116W incandescent light.
6.Major Maintenance Cost Saving, Surge protection device inside light.
7.Strong anticorrosion , seismic resistance protection and UV protection.
8.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9.Free maintenance and 3/4 inch or 1inch installation size being suitable for flag-pole or tower installation way.
10.There is one switch converting between Flasing mode and Steadyburning mode.
11.Five Years Warranty Period.
Detail Description:

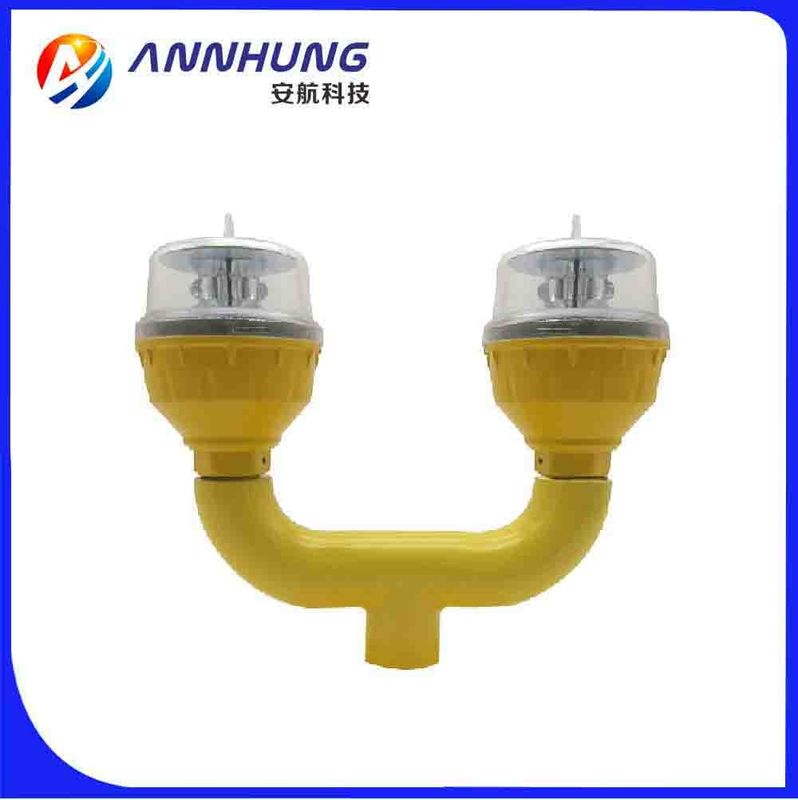

This aircraft warning light is the double light with Photocell. It can work at night and close during the day automatically by photocell. There are two lights. Main-standby way. One works, the other is for standby. When main light is broken, standby light can work automatically.
Application:
This series of aircaft warning light can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity AWL or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a steady or flashing red safety light.
Specifications:
| SPECIFICATIONS | AH-LI-D2 Low intensity Aircraft Warning Light red flashing light used on chimney tower building |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red |
| Intensity(cd) | ≥32.5(option 10cd, 50cd, 80cd,100cd) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | Flashing( 20times/minute as standard) or Steady adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. 24hours operation as option. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 110-240VAC AND 48VDC, 24vdc, 12vdc |
| Power(W) | 4 |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -40~70 |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | 3/4inches or 1 inches |
| Height(mm) | 258 |
| Width(mm) | 136 |
| Depth(mm) | 320 |
| Mass(kg) | 2 |
| Product Life Expectancy | 5 years plus |
| Environmental Factors | |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Seventh edition July 2016, table 6.3 |
| FAA | L-810 Steady-burning Red Aviation Obstruction Light |
Dimension Drawing
