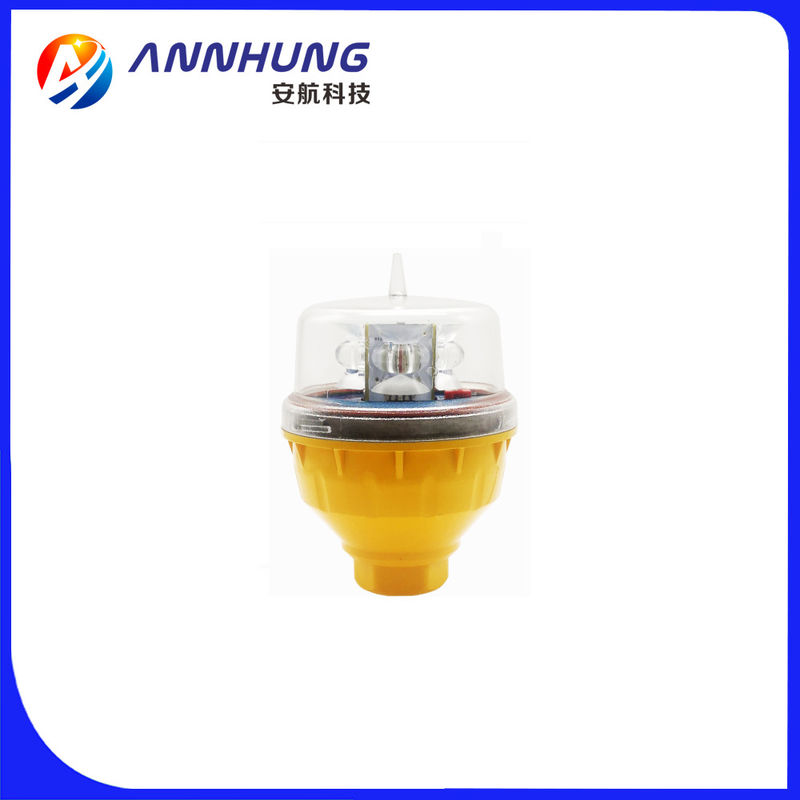

AH-LI-B2 LED Aviation Obstruction Light
Product Details
| Name: | AH-LI-B2 LED Aviation Obstruction Light, ICAO Low Intensity Type A Type B Type E Red Steady Light | Model: | AH-LI-B2 |
|---|---|---|---|
| Emitting Color: | Red | Light Intensity: | ≥32.5cd |
| Certificate: | ICAO Annex14 | Working Mode: | Steady (fixed) |
| Highlight |
AH-LI-B2 Tower Obstruction Light,32.5cd Aviation Warning Lights |
||
Product Description
AH-LI-B2 LED Aviation Obstruction Light, ICAO low intensity type A type B type E Red steady light
This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.
Compliance
l ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstacle Light
l FAA L-810
light video
Features
Electrical
l 3 high power CREE LED, make sure LED keep bright while use
l Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC
l LED power supply board includes short circuit and open circuit protection, Line surge protection by metal oxide varistor
Physical
l Bird deterrent spike on top
l Unique designed PMMA lens for converging light and good transparency
l High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing
l UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments
l Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
l 3/4inch thread hole make pole installation easy
l No screw fix type - just twist, the cover will be fixed tightly
System design
l Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
l Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB
l Surge and lightning protection
Optional
l Alarm contact(NO COM NC)for remote monitoring
l Infrared LED for pilot using NVG
l GPS sync flashing
Application
l AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.
l When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.
| SPECIFICATIONS | AH-LI-B2 Low-intensity L810 Single Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red(Other color is optional) |
| Intensity(candela) | ≥32.5cd(type B),others optional(10cd, 100cd,etc) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady-burning/20/30/60 adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12V, 48VDC) or AC(110-240VAC) or others |
| Power(W) | 2.5 |
| Lightning surge |
IEC61000-4-5 L- N ±3kV IEC61000-4-5 L- PE ±6kV IEC61000-4-5 N- PE ±6kV
|
| Electrostatic | IEC61000-4-2 Contact discharge 8kV |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | 3/4 inch pipe thread as standard. 1inch as option |
| Dimension(mm) | Φ90×130 |
| Weight(kg) | 0.3 |
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-40~55 |
| Storage temperature(℃) | -55~70 |
| Humidity | 10%-95%RH(No condensation) |
| Wind Speed | 240Km/h |
| Waterproof |
IP66
|
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Seventh edition July 2016, table 6.3 | |
| Low-intensity Type A/B/E Obstacle Light | |
| FAA | L-810 |
| Options Available | |
| Flashing rate | |
| NVG(Night Vision Goggles) compatible LED | |
| GSM Monitoring | |
| Dry contact alarm(NO COM NC) | |
|
GPS sync flashing |
Datasheet download AH-LI-B2 Low-intensity L810 Single Aviation Obstru...
