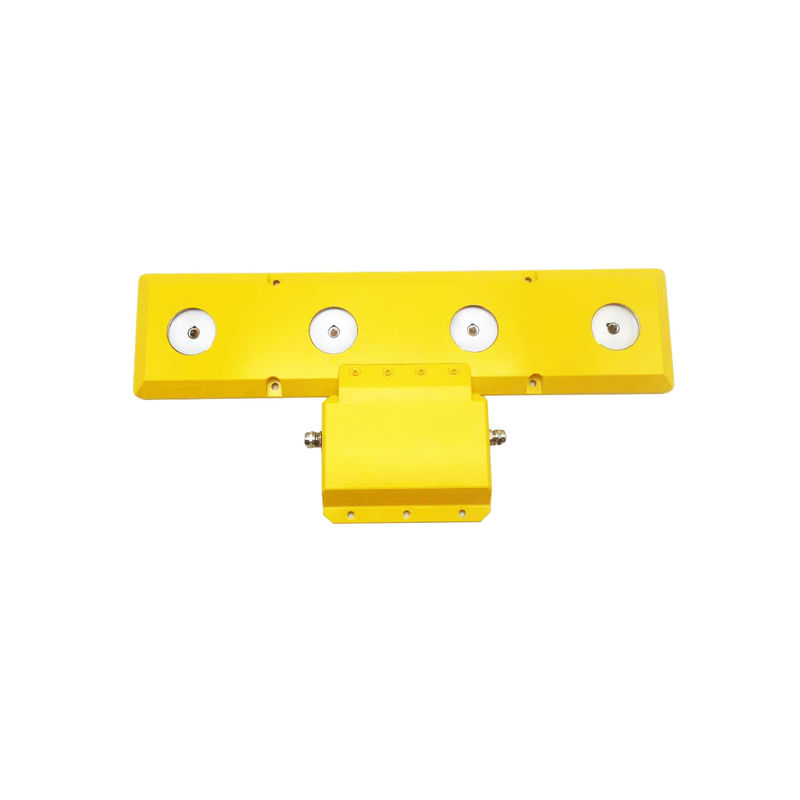

3W Helideck Circle H Helipad Landing Lights IP68 Waterproof
Helideck Circle-H Light is for the heliport identification marking “H” and the circle, The design of thickness (＜25MM ) make it easily installed and suitable for all kinds of heliport.
Compliance
l ICAO Annex 14 Volume I ,Appendix I Nov. 2016, figure A1-1-Colors for aeronautical Ground lights
l CAP 437
light video
Features
Electrical
l LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
l Power supply available in AC(110-240VAC), DC48V
Physical
l Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
l integrated cable connection
l UV protection Powder coated bright yellow color base make better visibility
l Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
l Customized cables with vulcanized cable termination protection and captive connection screws;
l Fault monitoring with fail indication via controller
Optional
l Infrared LED for pilot using NVG(Night Vision Goggles)
l Controller for power supplying and turn ON/OFF light
l VHF pilot to ground remote control
l Marine treated
Application
l Helipad/Heliport
l Drilling rigs
l Platforms
| SPECIFICATIONS |
AH-HP-H Helideck Circle-H Light |
| Light Characteristics |
|
| Light Source |
LED |
| Available Colors |
Green, Yellow (others are optional) |
| Effective Intensity(cd) |
2-12° ≤60cd |
| |
12-20°≤30cd |
| |
20-90°≤10cd |
| Flash Characteristics |
Steady burning |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) |
>100,000 |
| Electrical Characteristics |
|
| Operating Voltage |
DC(12V, 48VDC) or AC(110-240VAC) |
| Power(W) |
3 |
| Circuit Protection |
Integrated |
| Physical Characteristics |
|
| Body Material |
UV protected Polycarbonate |
| Base Material |
Powder-coated Die-casting aluminum |
| Dimension(mm) |
235×500×23 |
| Weight(kg) |
3.83 |
| Product Life Expectancy |
Average 5 years
|
| Environmental Factors |
|
|
Ambient Temperature(℃)
-55℃~+70℃
|
-25~70 |
| Humidity |
10~90% |
| Wind Speed |
80m/s |
| Waterproof |
IP68 |
| Compliance |
|
| ICAO |
ICAO Annex 14 Volume I ,Appendix I |
| |
Nov. 2016, figure A1-1-Colors for aeronautical |
| |
ground lights |
Datasheet download: AH-HP-H Helideck Circle-H Light.pdf
