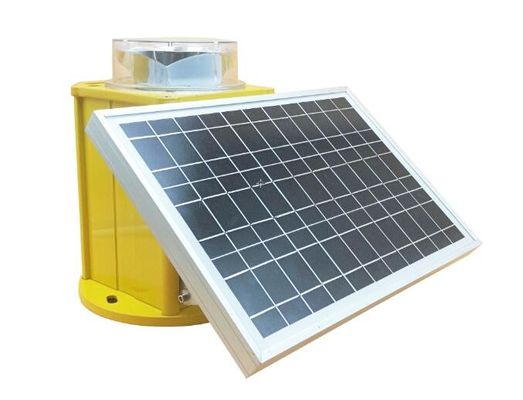

FAA L864 Solar Aviation Obstruction Light Medium Intensity 2000cd Red Flashing

FAA L864 Solar Aviation Obstruction Light Medium Intensity 2000cd Red Flashing

FAA L864 Solar Aviation Obstruction Light Medium Intensity 2000cd Red Flashing

Product Details:

Place of Origin: China
Brand Name: ANNHUNG
Certification: ICAO, ISO9001, CE
Model Number: AH-MS-B3

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Delivery Time: 5-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Color: Red Light Intensity: ≥2000cd
ICAO Standard: Medium Intensty Obstacle Light Material: Aluminum, PC
Life: 100,000hours Solar Panel: Mono Crystalline Silicon
Battery Type: VRLA FAA Regulation: L864 L885

Solar Aviaition Obstruction light, FAA L864, Solar medium intensity light, 2000cd red flashing light





Features

Electrical

l Ultra high intensity LED light source saving power consumption and maintenance

Physical

l UV & vibrations protected polycarbonate lens for converging light

l Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation

l Battery: Lithium ion battery

System design

l Solar panel as photocell for day & night working mode (dusk to dawn mode)

l ON/OFF button make local control easier

Optional

l GPS Synchronization

l Infrared LED for pilot using NVG







SPECIFICATIONS AH-MS-B3 LED LED Medium-intensity Type B L864 Solar Aviation Obstruction Light
Light Characteristics
Light Source Ultra high intensity LED
Emitting Color Red
Intensity(cd) >2000cd(Night)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥3
Flash Characteristics Flashing 20FPM
Operation Mode Dusk-to-Dawn operation(Solar panel as photocell)
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage(Vdc) 12
Circuit Protection Integrated
Solar Characteristics
Solar Module Type Mono crystalline Silicon
Output(watts) 20W
Charging Regulation Microprocessor controlled
Battery Characteristics
Battery type Lithium ion( VRLA battery is optional)
Nominal Voltage (V) 11.1V
Battery Capacity 16AH (others is optional)
Autonomy (hours) 120
Physical Characteristics
Lamb Body Material UV protected Polycarbonate
Base Material Die casting aluminum
Installation Size 200×200×M10
Overall Size (mm)

450×320×300

550

Weight(kg) 9
Product Life Expectancy >10years (Battery 3years)
Environmental Factors

Ambient Temperature(℃)

-55℃~+70℃

-35~80
Humidity 0~95%
Wind Speed 80m/s
Waterproof IP66
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
  Operations’ Seventh edition July 2016, table 6.3
  Medium-intensity Type A Obstacle Light
FAA L-864
Optional


GPS Synchronization





NVG - compatible infrared (IR) LED





Application

l AH-MS-B3 solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights light installed on the lower place.
