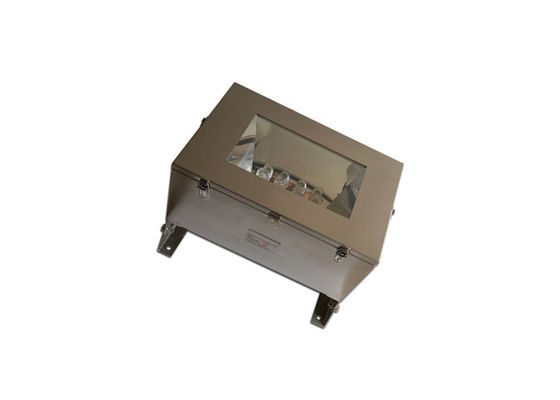

A L856 High Intensity Obstruction Light Chimeny Aircraft Warning Lamp 150 Watt

Minimum Order Quantity : 1 Price : 1-800 USD
Packaging Details : Six sides build in foam carton Delivery Time : 5 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 500 pieces per month
Place of Origin: China Brand Name: ANNHUNG
Certification: CE, RoHS,IOS Model Number: AH-HI-U

Detail Information

Horizontal Output(degrees): 120 Vertical Divergence(degrees): 3-7
Power(W): 150 Circuit Protection: Integrated
Compliance: ICAO, FAA L856 Easy Lamp Replacement: "Safe Plug” Lamp Holder
Waterproof: IP65
High Light:

tower warning lights

,

airplane warning lights

Product Description



High-intensity Type A L856 Aviation Obstruction Light



Product cmpliance

♦ ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light
♦ FAA L-856

Electrical
High-quality Xenon Lamp with 108times long lamp life, low cost and low power consumption.
Power supply available in DC(48V) or AC(110V, 240V). It can used on different projects.

Physical
Uses AH special technology for the ignition of xenon lamps, hold for long lamp life and very low UV and ozone emission
“Safe plug” lamp holder for easy lamp replacement.

System design
Built-in photocell for day/twilight/night operation
Surge and lightning protection. Better work performance for you.

Optional
► Alarm contact for remote monitoring
► GSM cellphone monitoring
► RS485 communication part for monitoring
► User adjustable flashing rate(40, 50, 60 flashes/minute)
► GPS synchronization

Application
   AH-HI-U High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.


  More detailed parameter:



Light Source Xenon
Emmiting color White
Intensity(cd) 200000cd±25%(Daytime), 20000cd±25%(Twilight) 2,000cd±25%(Night)
Operation Mode 24hours operation, 3 different modes
Flash Characteristics 40FPM(Others are optional)
Operate Voltage DC(48VDC) or AC(110, 240V)
Body Material High borosilicate glass
Base Material SUS304 stainless steel shell
Mounting 447×340×θ12
Dimension(mm) 486*400*320
Product Life Expectancy 5 years Plus
Waterproof IP65
ICAO Annex 14 Volume 1,'Aerodrome Design and
Operations’ Sixth edition 2016, table 6.3
High-intensity Type A White Obstacle Light
FAA L-856



More product imagine:



A L856 High Intensity Obstruction Light Chimeny Aircraft Warning Lamp 150 Watt 0













Our Service:

A L856 High Intensity Obstruction Light Chimeny Aircraft Warning Lamp 150 Watt 1A L856 High Intensity Obstruction Light Chimeny Aircraft Warning Lamp 150 Watt 2

Delivery :



A L856 High Intensity Obstruction Light Chimeny Aircraft Warning Lamp 150 Watt 3

Shenzhen Anhang Technology Company Limited is a specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. and have more than 8 years manufacturing experience for clients from whole world. Looking forward to contact with you.
