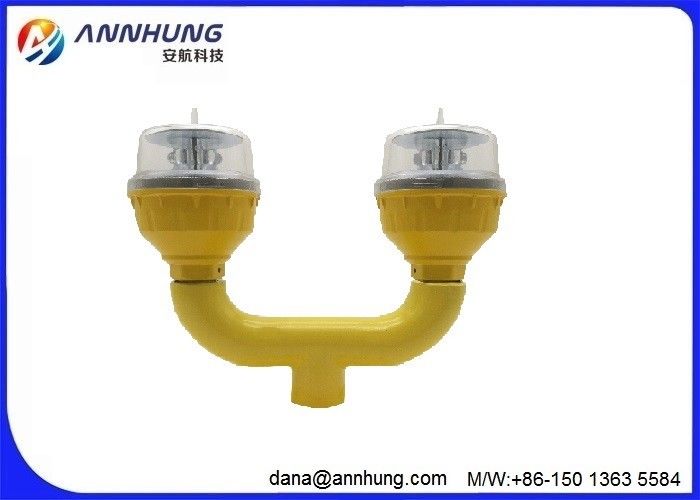

L810 Double LED Aviation Obstruction Light
Product Details
| Horizontal Output(degrees): | 360 | Vertical Divergence(degrees): | ≥10 |
|---|---|---|---|
| LED Life Experience(hours): | >100,000 | Operating Voltage: | DC(12-48VDC) Or AC(110-240VAC) |
| Power(W): | 5 | Body Material: | Polycarbonate |
| Base Material: | Die-casting Aluminum | Mounting: | 3/4inch |
| Weight(kg): | 1.5 | Waterproof: | IP65 |
| Name: | L810 Double LED Aviation Obstruction Light Polycarbonate Body For High Towers Aircraft Warning Light | ||
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description
L810 Double LED Aviation Obstruction Light Polycarbonate Body For High Towers aircraft warning light
Key Words
Double Aviation light
Twin Obstruction light
Low intensity light
compliant with ICAO,FAA,CAAC
Light video
Main Parameter
| Description | Parameter |
| Mode | AH-LI-D2 |
| Light intensity | ≥ 32.5cd(Option 10cd,50cd,80cd,100cd) |
| Flash rate | Steady-burning mode or Flashing mode(20-60times/minute) |
| Working way of two lights |
Two light flashing by Main(duty)-standby way, Two lights flashing at the same time or two lights flashing 1.5 second interval.Flash mode, three ways) Two light working by Main(duty)-standby way, Two lights working at the same time.(Steady-burning way,two ways) |
| Light source | LED |
| Service life of LED | ≥ 100,000hours |
| Operating voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| Power consumption | 4W |
| Overall size(mm) | 254 by 210 by 90 |
| Installation size | 3/4inches or 1 inches |
| Vertical degree | ≥ 10° |
| Horizontal degree | 360° |
| Material | |
| Housing | PC |
| Base | die casting aluminum |
| Weight | 2Kg |
| Emitting color | Aviation red |
| Ambient temperature | -40℃~+70℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
Function
This product is the double light with Photocell. It can work at night and close during the day automatically by photocell. There are two lights. Main-standby way. One works, the other is for standby. When main light is broken, standby light can work automatically.
This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a steady or flashing red safety light.
Advantages
1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird drop.
3. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4. LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5. About 96% less power than 116W incandescent light.
6. Major Maintenance Cost Saving, Surge protection device inside light.
7. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8. Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9. Free maintenance and 3/4 inch or 1inch installation size being suitable for flag-pole or tower installation way.
10. There is one switch converting between Flasing mode and Steady-burning mode.
11. Five Years Warranty Period.
Compliance
Low-intensity Type A or Type B FAA L-810
Low Intensity Double Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
