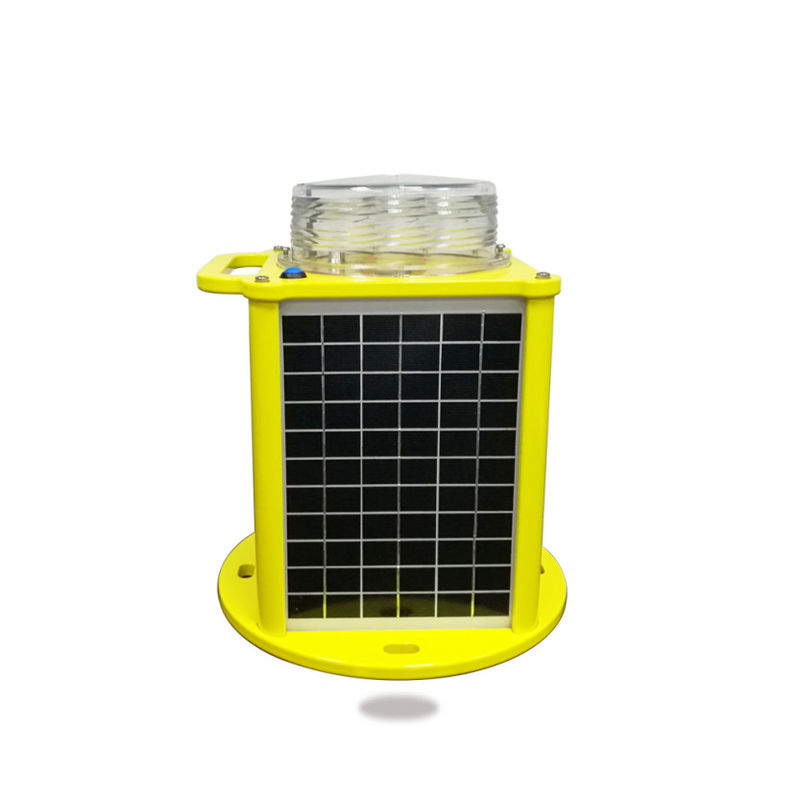

LED Solar Airfield Lighting, Steady Burning Build In Airport Light
Compliance
** ICAO Annex 14
** FAA AC 150/5345
** CAP 437
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing, UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
♦ ON/OFF button interface located under base
♦ Turn on at night and closed at daytime automatically
Optional
► User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation
► External charger
► Wireless remote control
► NVG - compatible infrared (IR) LED
► GPS sync flashing
► Pilot to ground remote control(VHF radio control)
Application
≈ Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting,Portable or expedited airfield lighting, Threshold lighting, Runway end light
≈ Helipad taxiway
≈ Emergency operations
Detail imagine:
Why choose us
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3. International advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4. Strong impact lamp shape with PC material.
5. At least 7 days autonomy.(optional 15days)
6. Having lightning-protection function.
More Product Descripton
| Description |
Parameter |
| Operating Voltage |
12V |
| LED Life Experience(hours) |
>100,000 |
| Circuit Protection |
Integrated |
| Available Colors |
Red, Green, Yellow, White, Blue Red/Green, Yellow/White |
| Solar Module Type |
Mono crystalline Silicon |
| Output(watts) |
6*4=24W |
| Charging Regulation |
Microprocessor controlled |
| Battery type |
Valve Regulated Lead Acid battery |
| Lamb Body Material |
Aluminum Alloy |
| Base Material |
Powder-coated Die-casting aluminum |
| Overall Size (mm) |
260×260×340 |
| Installation Size |
220×220×M10 |
