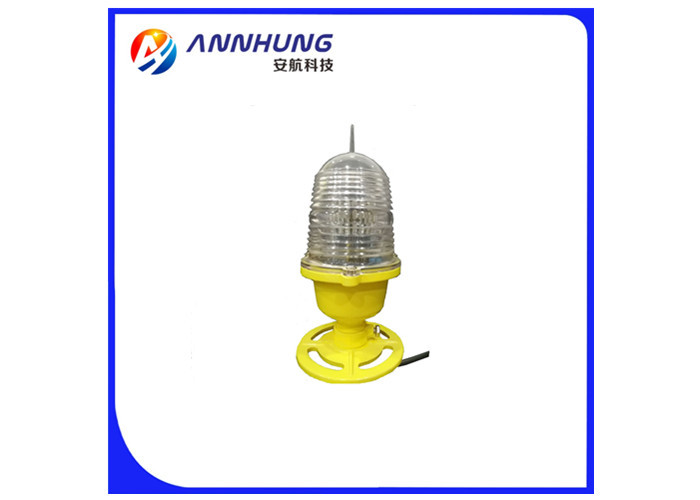

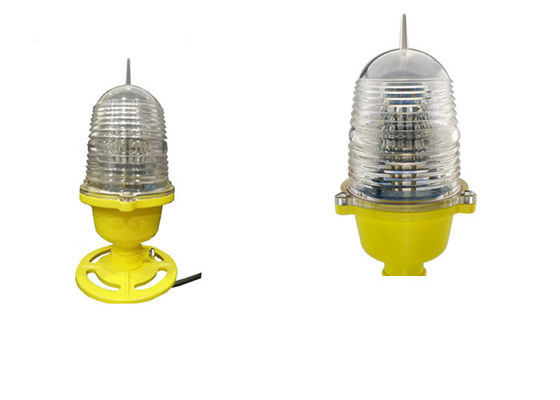

Helipad TLOF Light, FAA LED Heliport Runway Lights Performance Can Be Customized
AH-HP-E heliport FATO ares light should not exceed a height of 25cm. There is a fragile coupling in the base connection, so if aircraft hit the light by accident, the base will break immediately to avoid more damage. Designed base ICAO standred.
Compliance
** ICAO Annex 14 Volume ǁ Heliports 5.3.
** FAA AC 150/5390-2B Heliport Design Guide
** CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling reduce the secondary damage to helicopters effectively
Optional
► Infrared LED for pilot using NVG(Night Vision Goggles)
► Controller for power supplying and turn ON/OFF light
► VHF pilot to ground remote control
► Marine treated
Application
♦ Helipad/Heliport TLOF areas
♦ Heliport FATO ares
♦ Helipad Runway
♦ Helipad taxiway
♦ Infrared LED Compatible for NVG
More detailed parameter:
|
Light Source
|
LED |
|
Available Colors
|
Green, Yellow, White, Red, Blue
|
|
Intensity(cd)
|
≥50cd |
|
Flash Characteristics
|
Steady burning
|
|
Operation Mode
|
24hours operation
|
|
Operating Voltage
|
DC(12-48VDC) or AC(110-240VAC)
|
|
Body Material
|
UV protected Polycarbonate
|
|
Base Material
|
Powder-coated Die-casting aluminum
|
| Mounting |
93×93×12 |
| Dimension(mm) |
136×136×250 |
| Base |
Frangible coupling |
| Power(W) |
5 |
| Weight(kg) |
1.2 |
| Wind Speed |
80m/s |
| Waterproof |
IP65 |
Company Information
Shen zhen Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Helipad Light. And have more than 8 years manufacturing experience for clients from whole world.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities).
More Product imagine:
