Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring
  • Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring
  • Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring
  • Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring
  • Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring

Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring

Place of Origin China
Brand Name Anhang
Certification CE, RoHS
Model Number AH-LS-C4
Product Details
Light Source:
LED
Available:
Red, Green, Yellow, White, Blue
Operation Mode:
Dusk-to-dawn Automatically (Built-in Photocell)
Visible Range(NM):
4-6nm (AT@0.74)
Power(W):
24
Circuit Protection:
Integrated
Charging Regulation:
Microprocessor Controlled
Weight(kg):
10
Horizontal Output(degrees):
360
Vertical Divergence(degrees):
7
High Light:

marine signal lantern

,

solar powered lanterns

Payment & Shipping Terms
Minimum Order Quantity
1
Price
1-600
Packaging Details
Six sides build in foam carton
Delivery Time
3 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 pieces per month
Product Description

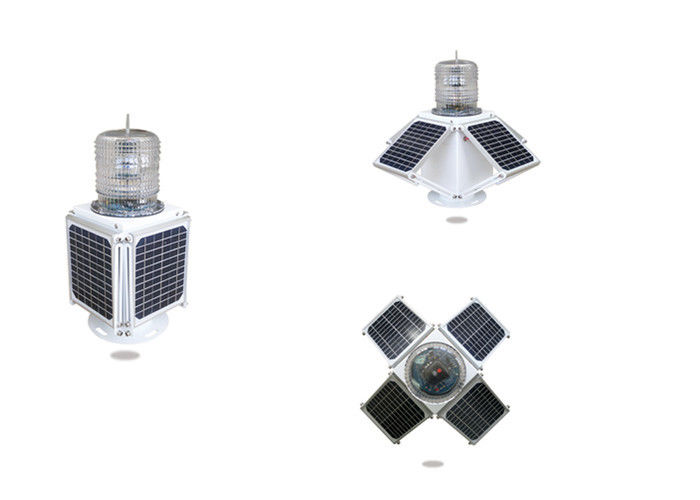

Marine Navigation Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.And all solar panel vertical angle is adjustable ensure it could be used in different area. Best to accept lighting and higher conversion efficiency. Adjustable the angle base your requirement



ON/OFF button located interface, so there is no need to open the light, user could turn on/off light easily.


Our products advantages:

IALA E-200-1 complaine



Electrical
 Based on LED technology, and its color complies to IALA Recommendations E-200-1.
 LED technology reduces maintenance time & costs. Choice the best light source


Physical
 PC housing, UV resistance, shockproof and corrosion proof.
 Bird deterrent spike
 Powder coated die casting aluminum base
 4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
 4-side solar panel vertical angle adjustable
 ON/OFF button interface. Characteristic intelligent design, the best in every aspect


System design
 Solar panel as photocell for day/night operation(dusk to dawn). Build in photo cell.
 Equipped with rotary switches for adjust 256 kinds of flashing rate comply with IALA


Optional Functions:
► User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation
► External charger
► Wireless remote control
► GSM Monitoring
► RS232 485 port
► GPS Sync flashing

These willmeet your projects' request


Application
 AH-LS-C4 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation. Solar light source is convenient and portable.



 More detailed parameter:



Flash Characteristics Adjustable 256 IALA light characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting 160×160×Φ12
Dimension(mm) 220×220×470
Charging Regulation Microprocessor controlled
Battery Capacity (Ah) Depends on different visible range
Battery type Valve-Regulated Lead Acid Battery
Product Life Expectancy Average 5 years
Humidity 0%-100%
Wind Speed 80m/s
Waterproof IP66
IALA

Signal colors compliant to IALA E-200-1



Contact me:

Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring 0Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring 1

Produce imagine:

Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring 2







Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring 3









Our Express:

Adjustable Panel Solar Powered Navigation Lights Vertical Angle GSM Monitoring 4

We are specialized enterprise focusing on reseach, production, sales and after-sales service of LED navigation marine lanterns, and have more than 8 years manufacturing experience for clients from whole world. Looking forward to cooperate with you.
