LED Aviation Obstruction Light
>
|
|
| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | CE, RoHS, ICAO, ISO9001 |
| Model Number | AH-MI-A2 |

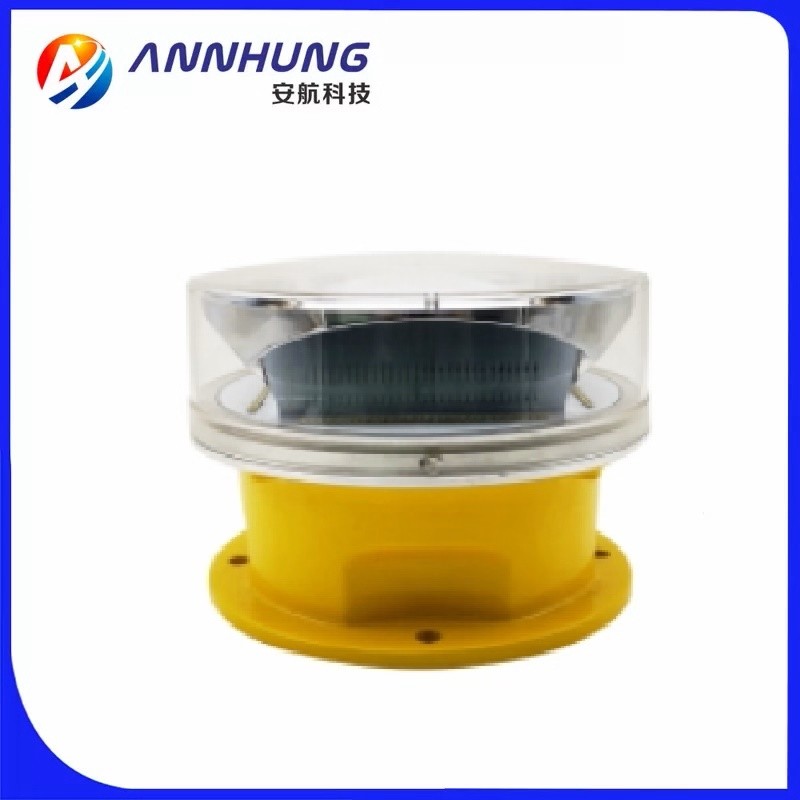

This AH-MI-A2 Medium-intensity Type A Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle which height is between 105 to 150 meters. Aircraft flight warning effect.
Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance.
Product Overview:
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type A Obstruction Light
** FAA L-865
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 48VDC) or AC(110-240VAC). Meet customer needs.
Physical
Unique design and UV protected polycarbonate lens for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high.
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection. More secure use.
Optional
► Alarm contact for remote monitoring
► Infrared LED for pilot using NVG
► GSM cellphone monitoring
► RS485 communication part for monitoring
► User adjustable flashing rate(40, 50, 60 flashes/minute)
► GPS synchronization
Application
Medium-intensity Aviation Warning light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 105-150meter, and most time work with low intensity lights & medium intensity type B light installed on the lower place.
More detailed parameter:
| Light Source | CREE high intensity LED |
| Available Colors | White |
| Intensity(cd) | 20000cd±25%(Daytime), 2000cd±25%(Night) |
| Flash Characteristics | 40-60times per minute |
| Body Material | Polycarbonate |
| Power(W) | 15(Daytime), 10(Night) |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | 190×190×12 |
| Dimension(mm) | 236*236*190 |
| Weight(kg) | 5 |
| Product Life Expectancy | 5 years Plus |
| ICAO |
Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition 2016, table 6.3 Medium-intensity Type A White Obstacle Light |
| FAA | L-865 |
Contact us:
Produce imagine:
Express:
Shenzhen Anhang Technology Company Limited is a specialized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction safety warning light, and have more than 8 years manufacturing experience for clients from whole world. If you need my help, feel free to contact me.
Tower Crane Flash Obstruction Light 2000cd Medium Intensity Aviation Lamp FAA L865
Datasheet: download AH-MI-A2 LED Medium-intensity Type A L865...
