FAA L865 Low Intensity Obstruction Light High Pole 40FPM Flash Characteristics
Product Details
| Horizontal Output(degrees): | 120 | Vertical Divergence(degrees): | 3-7 |
|---|---|---|---|
| Weight(kg): | 9 | Operation Mode: | 24hours Operation, 3 Different Modes |
| LED Life Experience(hours): | >100,000 | Operating Voltage: | DC(12-48VDC) Or AC(110-240VAC) |
| Power(W): | 30 | Circuit Protection: | Integrated |
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description

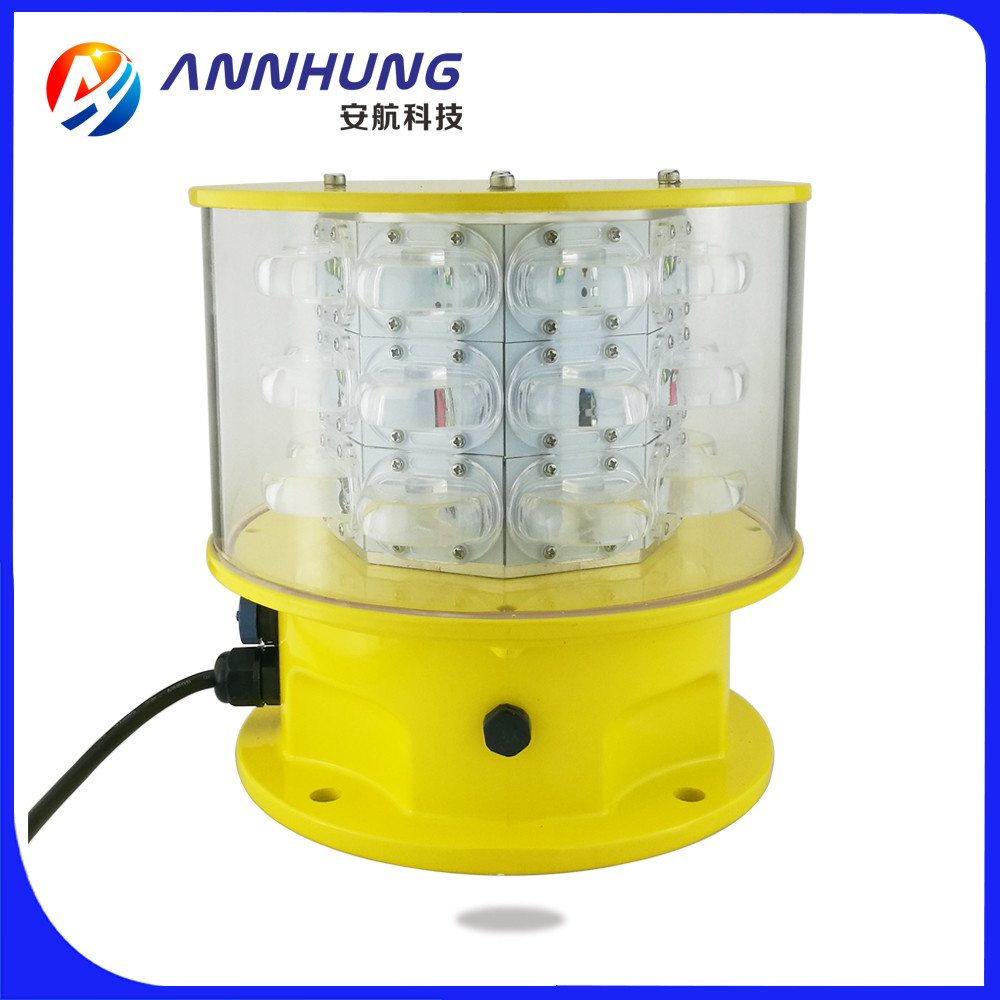

AA L865 Aviation Obstruction Light, High Pole Obstruction Light 40FPM Flash Characteristics
This Medium-intensity Type A&B Aviation Obstruction Light flashing white color at daytime and red color at night. It’s designed for marking top of obstacle which height isbetween 45 to 150 meters.
Ultra high intensity CREE LED is used for the light source nsure light’s long life experience and good performance.
Product complaine:
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light
FAA L-856
Electrical
CREE ultra high intensity LED as light source saving power
Power supply available in DC(48V) or AC(110V, 240V). Can be designed base project.
Physical
Unique design and UV protected polycarbonate lens for converging light and saving LED power
UV protection Powder coated bright yellow color base make better visibility
Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light,good performance good choice.
System design
Built-in photocell for day/twilight/night operation
Surge and lightning protection
Optional
► Alarm contact for remote monitoring
► Infrared LED for pilot using NVG
► GSM cellphone monitoring
► RS485 communication part for monitoring
► GPS synchronization
Application
AH-HI-A0 200,000cd±25% cd High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.
More detailed parameter:
| Light Source | CREE high intensity LED |
| Emmiting color | White (Daytime); Red (Night) |
| Intensity(cd) | 20000cd±25%(Daytime), 2000cd±25%(Night) |
| Operation Mode | 24hours operation |
| Flash Characteristics | 40-60 flashes per minute |
| Body Material | Polycarbonate (High borosilicate glass as optional) |
| Base Material | Die-casting aluminum |
| Mounting | 190×190×θ12 |
| Dimension(mm) | 236×236×230 |
| Product Life Expectancy | 5 years Plus |
| Waterproof | IP66 |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition 2016, table 6.3 Medium-intensity Type A White Obstacle Light Medium-intensity Type B Red Obstacle Light |
| FAA | L-865, L864 |
More product imagine:
Our Service:
Delivery :
Shenzhen Anhang Technology Company Limited is a specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, and have more than 8 years manufacturing experience for clients from whole world. Looking forward to contact with you.
