Steady Burning Flash LED Aviation Obstruction Light Die Casting Aluminum Base Material
Product Details
| Horizontal Output(degrees): | 360 | Vertical Divergence(degrees): | ≥10 |
|---|---|---|---|
| Operation Mode: | Dusk-to-dawn Automatically As Standard. 24 Hours Operation As Option | LED Life Experience(hours): | >100,000 |
| Operating Voltage: | DC(12-48VDC) Or AC(110-240VAC) | Power(W): | 20 |
| Circuit Protection: | Integrated | Installation Size(mm): | 190×190×12 |
| Temperature(℃): | -45~80 | ||
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description
AH-MI-C LED Medium-intensity 2,000cd±25% light can be used alone on the top of the high-rise building, high chimney, Telecom tower etc whose height is between 45m and 105m. Stady burning emitting red color lights work.
Product Detailed Parameter:
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Obstruction Light
FAA L-864
Electrical
LED as light source saving power consumption and maintenance,95% less power than equivalent incandescent light. Better light source,better product quality.
Power supply available in DC(12-48VDC) or AC(110-240VAC). Base on customers request, can be designed for you.
Physical
Bird deterrent spike on top, make lights keep cleaner and work better.
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility. More wider visible range.
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Optional
► Alarm contact for remote monitoring
► Infrared LED for pilot using NVG
► GSM cellphone monitoring
► RS485 communication part for monitoring
► GPS synchronization
► Adjustable flashing rate(20-30-40-50-60)
Application
AH-MI-C Medium-intensity red stady burning light could be used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is 45-105meter, and low intensity lights installed on lower place. Easy to install and better performance.
Medium-intensity type B light also use with Medium-intensity type A and high-intensity light when obstacle is more than 105meter.
More detailed parameter:
| Light Source | LED |
| Available Colors | Red (Other color is optional) |
| Intensity(cd) | 2,000cd±25% |
| Flash Characteristics | Steady burning |
| Body Material | UV protective Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Operation Mode | Dusk-to-dawn Automatically as standard.24 hours operation as option |
| Dimension(mm) | 220*220*233 |
| Weight(kg) | 2.3 |
| Product Life Expectancy | Average 5 years |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP67 |
| Customize function |
Depends on customer’s project,we could design for you. |
Contact us:

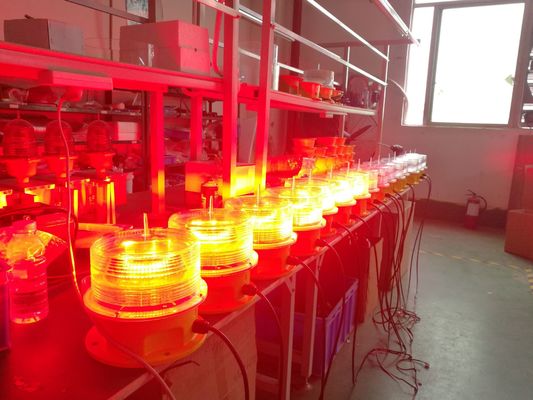

Produce imagine:
Delivery:
Shenzhen Anhang Technology Company Limited is a specialized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, and have more than 8 years manufacturing experience for clients from whole world. If our product could help you, looking foreard to cooperate with you.
