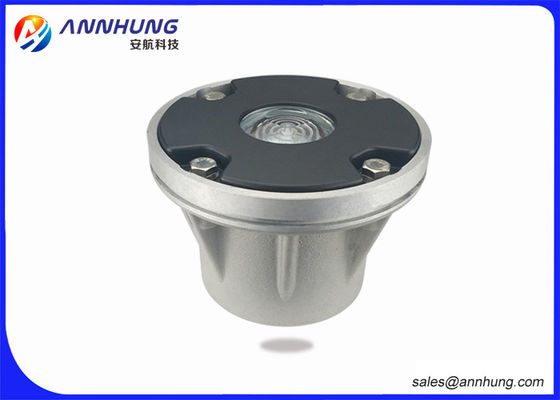

Aiming Point Helipad Landing Lights LED Helipad Inset Green Light Pressure Resistance Lens
Product Details
| Operating Voltage: | 110-240VAC, 48VDC, 24VDC Or Others | Product Life Expectancy: | Average 5 Years |
|---|---|---|---|
| Ambient Temperature(℃): | -55~70 | Humidity: | 0-100% |
| Wind Speed: | 80m/s | Intensity(cd): | ≥100cd |
| Power(W): | 7 | Installation Size(mm): | 199×199×146 |
| Highlight |
portfolio landscape lighting,perimeter lighting products |
||
Product Description
LED Helipad Inset light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.Protect thr aircraft and extend lamp life.
It could be used as Aiming point light, perimeter light of FATO (Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway, runway, flight path Lighting, etc. The emitting color is green or yellow or white or blue. Die-casting aluminum covered by black hard anodizing layer have good corrosion protection and load bearing,longer life.It is your best purchasing choice.
Product Compliance:
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light.Save power, protect the enviroment.
Power supply available in AC(110-240VAC), DC48V
Physical
Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by black hard anodizing layer have good corrosion protection and load bearing
IP68 waterproof ensure light work fine underground. Combine design standrads, strengthen origal material quality to produce satisfied products.
Application
Helipad/Heliport TLOF areas
Heliport FATO ares
Helipad Runway
Helipad taxiway
Aiming point light
More product parameter:
| Light Source | CREE Ultra high intensity LED |
| Available Colors | Green or White or Yellow or Blue or Red |
| Flash Characteristics | Steady burning |
| Output(watts) | 18 |
| Product Service Life | Average 5 years |
| Operating Voltage | 110-240VAC, 48VDC, 24VDC or others |
| Base Material | Painted aluminum |
| Body Material | Anodized Die-casting aluminum |
| Overall Size (mm) | 194×194×138 |
| Installation Size | 199×199×146 |
| Weight(kg) | 4.5 |
| Waterproof | IP68 |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3 |
| Infrared LED compatible for NVG (Night Vision Goggles) | |
| Options Available | Marine Treated |
| VHF pilot to ground remote control |
